DST-2 Electric Operating Table (for Ophthalmology)

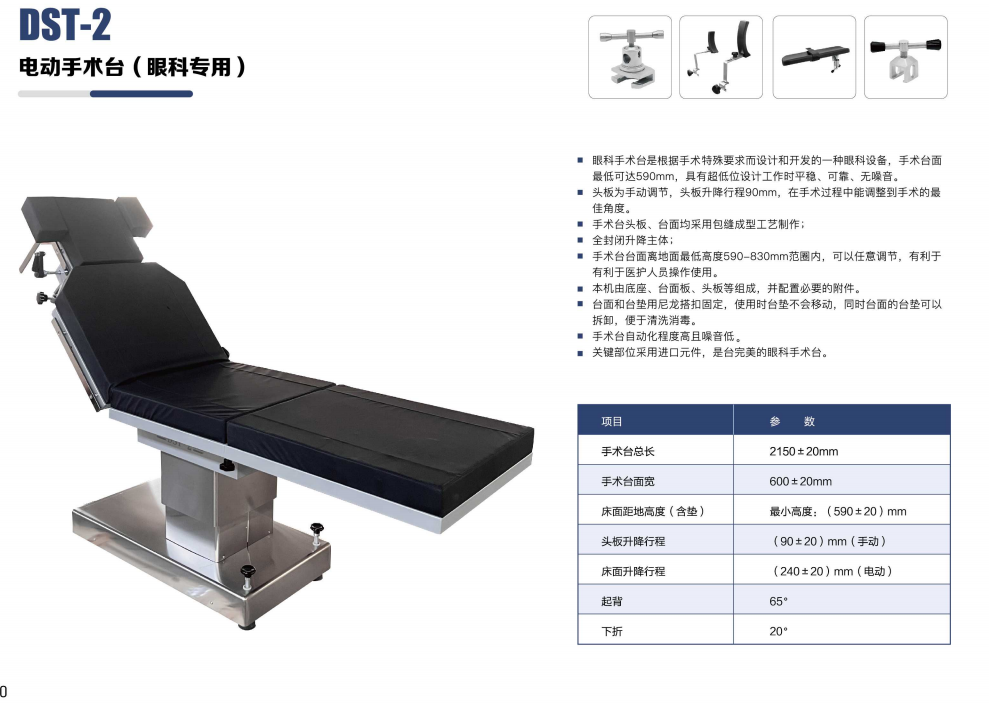

Item Parameters
Operating table total length: 2150 ± 20 mm
Operating table width: 600 ± 20 mm
Minimum table height from floor (including padding): (590 ± 20) mm
Headboard lift travel: (90 ± 20) mm (manual)
Table lift travel: (240 ± 20) mm (electric)
Back lift: 65°
Fold down: 20°

The ophthalmic operating table is designed and developed based on the specific requirements of surgery. Its ultra-low profile allows for smooth, reliable, and silent operation.
The headboard is manually adjustable, with a 90mm lift range, allowing for optimal positioning during surgery.
Both the headboard and tabletop are manufactured using a seam-wrapped molding process, and the lifting mechanism is fully enclosed.
The minimum height of the operating tabletop from the ground can be adjusted within a range of 590-830mm, facilitating easy operation by medical personnel.

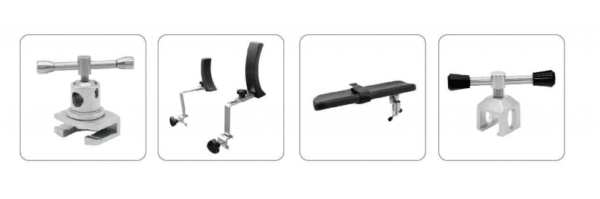

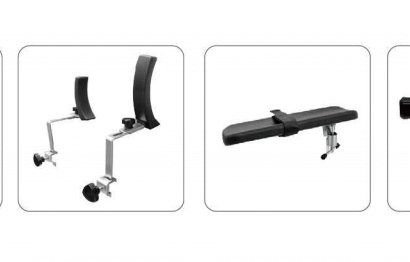

The unit consists of a base, tabletop, headboard, and accessories.
The tabletop and mat are secured with Velcro, ensuring they remain stationary during use. The mat is also removable for easy cleaning and disinfection.
The operating table boasts a high degree of automation and low noise levels.
Key components utilize imported components, making it a perfect ophthalmic operating table.
