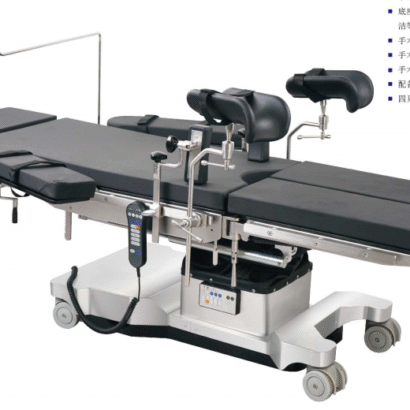

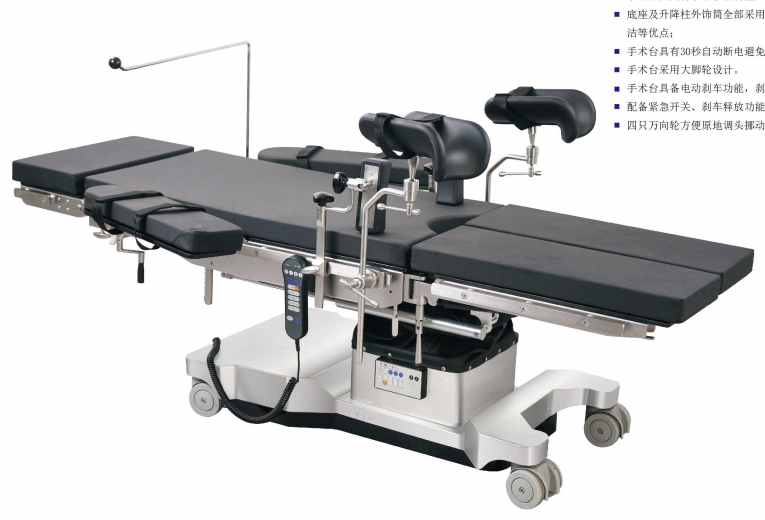

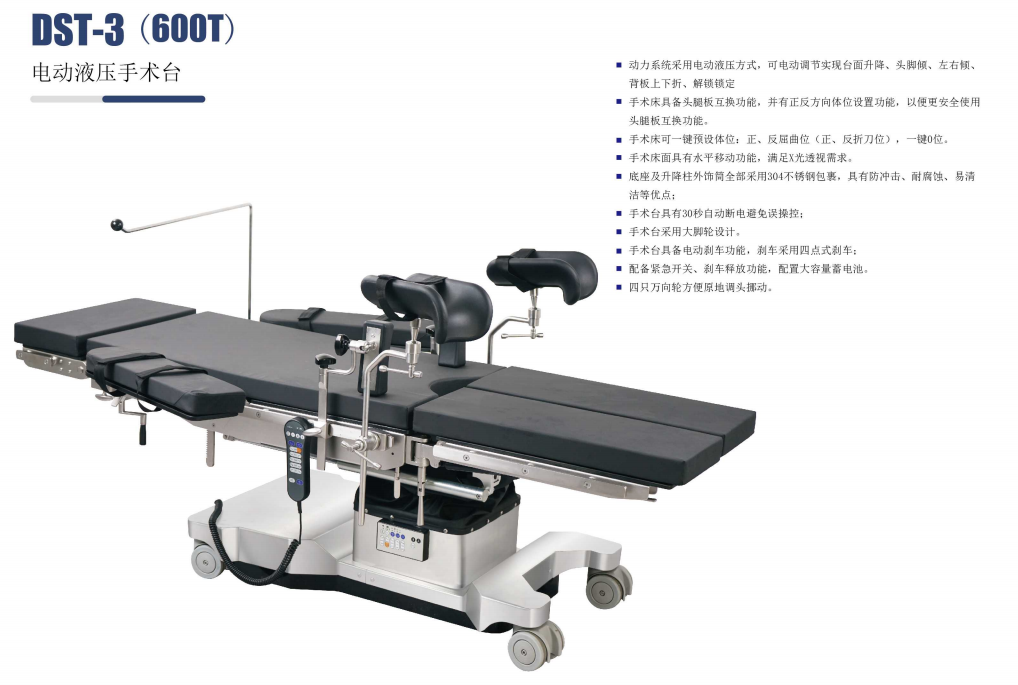

DST-3 (600T) Electric-hydraulic operating table

Table Dimensions (2070×520) ± 10mm
Table Height (excluding seat): Maximum (1040 ± 20)mm, Minimum (540 ± 20)mm
Forward/Backward Tilt: Forward ≥ 30°, Backward ≥ 30°
Left/Right Tilt: Left ≥ 20°, Right ≥ 20°
Headrest Adjustment: Upward Fold ≥ 50°, Downward Fold ≥ 90°
Backrest Adjustment: Upward Fold ≥ 80°, Downward Fold ≥ 40°
Leg Adjustment: Upward Fold ≥ 10°, Downward Fold ≥ 90°, Outward Bending ≥ 90°
Translation Travel: ≥ 300mm
Waist Bridge Travel: ≥ 140mm

The electro-hydraulic power system allows for electrically adjustable tabletop height adjustment, head and foot tilt, left and right tilt, and backrest folding, unlocking, and locking. The operating table features interchangeable head and leg rests, as well as forward and reverse body position settings for safer use.
The operating table can be preset with one click: forward and reverse flexion positions (forward and reverse scalpel positions), and a single click to reset the 0 position. The operating table also features horizontal movement to accommodate X-ray fluoroscopy.
The base and lifting column exterior are entirely clad in 304 stainless steel, offering impact resistance, corrosion resistance, and easy cleaning.
The operating table features a 30-second automatic power-off function to prevent accidental operation and large casters.
The operating table has a four-point electric brake, equipped with an emergency switch, brake release function, and a large-capacity battery. Four universal wheels facilitate on-the-spot maneuvering.
