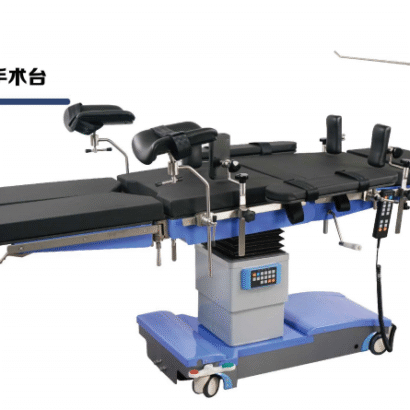

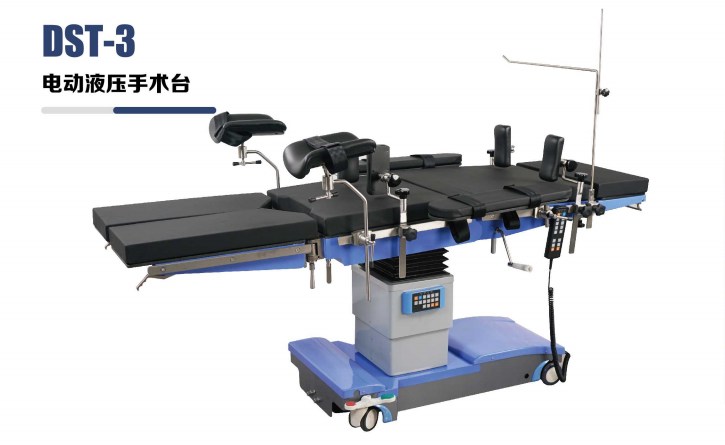

DST-3 Electric Hydraulic Operating Table

Item Parameters
Tabletop Dimensions (2150×540) ±10mm
Tabletop Height from Floor (excluding Pad): Maximum: Minimum: (650±20) mm (1000±20) mm
Lifting Stroke: (350±20) mm (Electric)
Tabletop Longitudinal Travel: (330±20) mm (Electric)
Head and Foot Tilt: Head Tilt: 28°±2°
Foot Tilt: 28°±2° (Electric)
Tilt Angle: Left: 23°±2°
Right: 23°±2° (Electric)
Backboard Fold Up: 78°±2°
Fold Down: 40°±2° (Electric)
Legboard Fold Up: 30°±2°
Fold Down: 90°±2° (Manual)
Headboard Fold Up: 50°±2°
Fold Down: 90°±2° (Manual)

The electric hydraulic transmission structure enables precise positioning of the bed and more uniform and stable movement, ensuring reliable and durable performance. The operating table base features large casters (diameter ≥ 100mm) for flexible mobility. The casters rise when braking, ensuring firm contact and excellent stability between the table base and the floor. The table top is made of a transparent material (the back panel is carbon fiber), and the electric horizontal travel range is 330mm, providing precise and convenient positioning for the C-arm. Full-body X-rays can be performed without moving the patient. The electric operating table has both standard and reverse modes, with interchangeable head and foot positions. Two independent electronic operating systems operate independently, driving various movements such as lift, translation, head and foot tilt, and left and right tilt. One system is controlled by a remote control, while the other serves as a backup control panel for the operating table. These two systems operate independently, ensuring smooth and reliable operation. High-precision linear guides ensure smooth operation and reliable operation of the operating table. The ABS base cover features an anti-glare treatment, reducing eye fatigue for medical staff and facilitating cleaning and disinfection. The table cushion is made of artificially wrapped, high-density memory foam.

The scientific base design provides ample room for the C-arm to maneuver and provides space for the surgeon’s feet during surgery. (Optional) One set of rechargeable batteries, sufficient for 80-100 surgeries, ensures the stability of the operating table.

(Optional) One-touch reset function.

(Optional) One-touch “/” and “V” positions facilitate surgical positioning.
