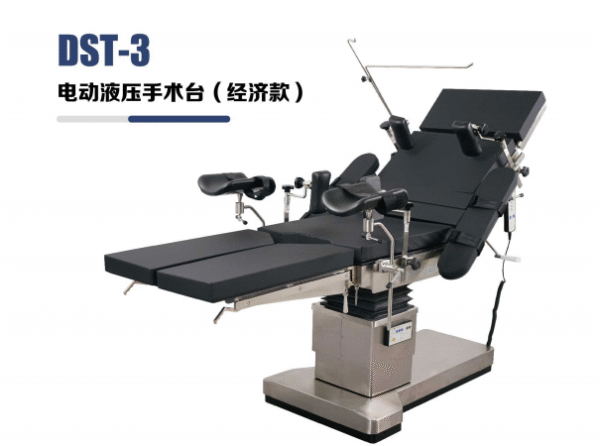

DST-3 Electric Hydraulic Operating Table (Economy Model)

Parameters
Table Dimensions (2150×540) ±10mm
Table Height (excluding seat): Highest (1000±20)mm, Lowest (660±20)mm
Lifting Travel (340±20)mm (electrical)
Head and Foot Tilt: 25±2°, Foot Tilt: 25±2° (electrical)
Leg Adjustment: Manually fold up 28±2°, fold down 90±2°
Back Adjustment: Manually fold up 65±2°, fold down 35±2°
Head Adjustment: Manually fold up 30±2°, fold down 90±2°
Table Longitudinal Travel (330±20)mm (electrical)
Tilt: Left: 22±2°, Right: 22±2° (electrical)

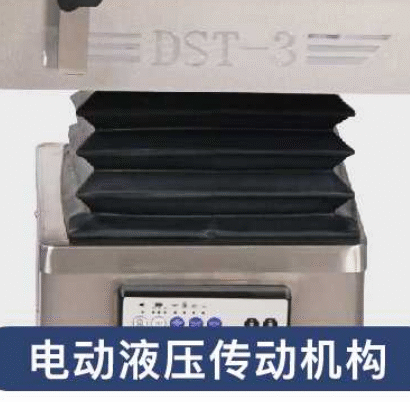

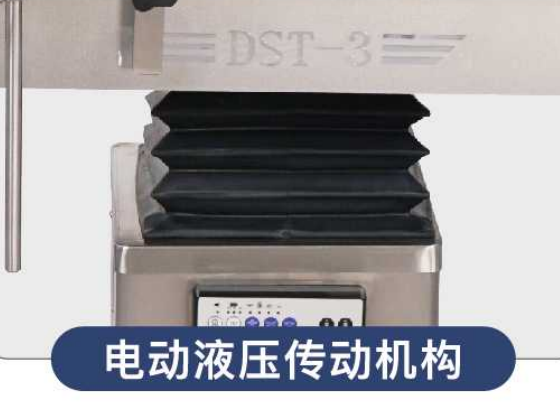

The electro-hydraulic transmission structure ensures precise positioning of the table, consistent and stable movement, and reliable performance. The scientifically designed base provides ample room for the C-arm, space for the operating staff’s feet, and ensures stable and balanced operation.

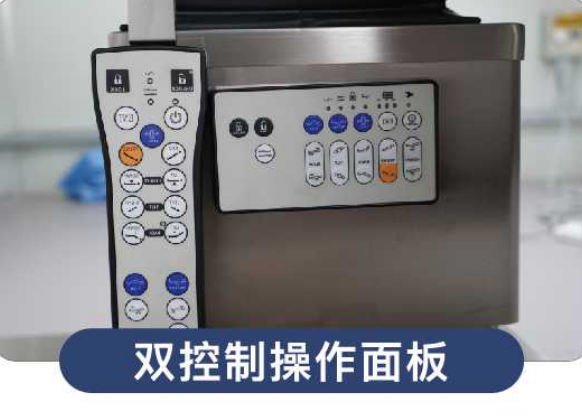

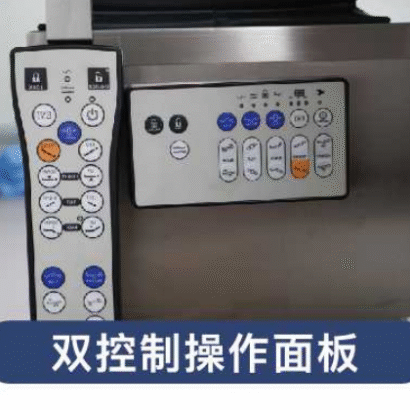

The table top has an electric horizontal travel of 330mm, providing precise and convenient positioning of the C-arm. Two independent electronic control systems are used: one for remote control and the other for backup operation of the operating table. Lift, translation, head-foot tilt, and left-right tilt are driven by independent power systems.

High-precision linear guides ensure smooth operation of the operating table.

The mattress is made of high-density, soft, single-piece foam. It naturally molds to its shape and has a memory function to reduce local pressure. It is seamless, waterproof, easy to clean, anti-static, and removable.
