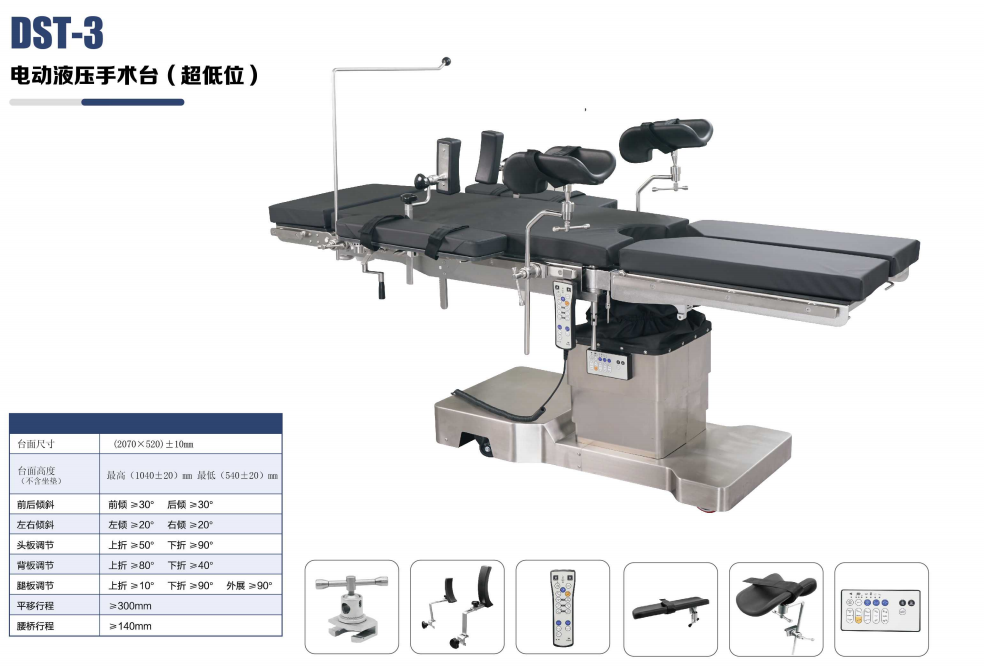

DST-3 Electric Hydraulic Operating Table (Ultra-Low Position)

Table Dimensions (2070×520) ± 10mm
Table Height (excluding seat): Maximum (1040 ± 20)mm, Minimum (540 ± 20mm)
Forward/Backward Tilt: Forward ≥ 30°, Backward ≥ 30°
Left/Right Tilt: Left ≥ 20°, Right ≥ 20°
Headrest Adjustment: Upward Fold ≥ 50°, Downward Fold ≥ 90°
Backrest Adjustment: Upward Fold ≥ 80°, Downward Fold ≥ 40°
Leg Adjustment: Upward Fold ≥ 10°, Downward Fold ≥ 90°, Outward Bending ≥ 90°
Translation Travel: ≥ 300mm
Waist Bridge Travel: ≥ 140mm

The electro-hydraulic transmission structure enables precise positioning of the table, consistent and stable movement, and reliable performance. The scientifically designed base provides ample room for the C-arm, space for the operating staff’s feet, and ensures stable and balanced operation. The table panel has an electric horizontal travel of 330mm, providing precise and convenient positioning for the C-arm. ■ Two independent electronic control systems: one for remote control and the other for backup operation of the operating table. Lift, translation, head-foot tilt, and left-right tilt are driven by independent power systems. High-precision linear guides ensure smooth operation. ■ Mattress: Made of high-density, soft, single-piece foam. Naturally shaped with a memory function, it reduces local pressure. Seamless, waterproof, easy-to-clean, anti-static, and removable.
