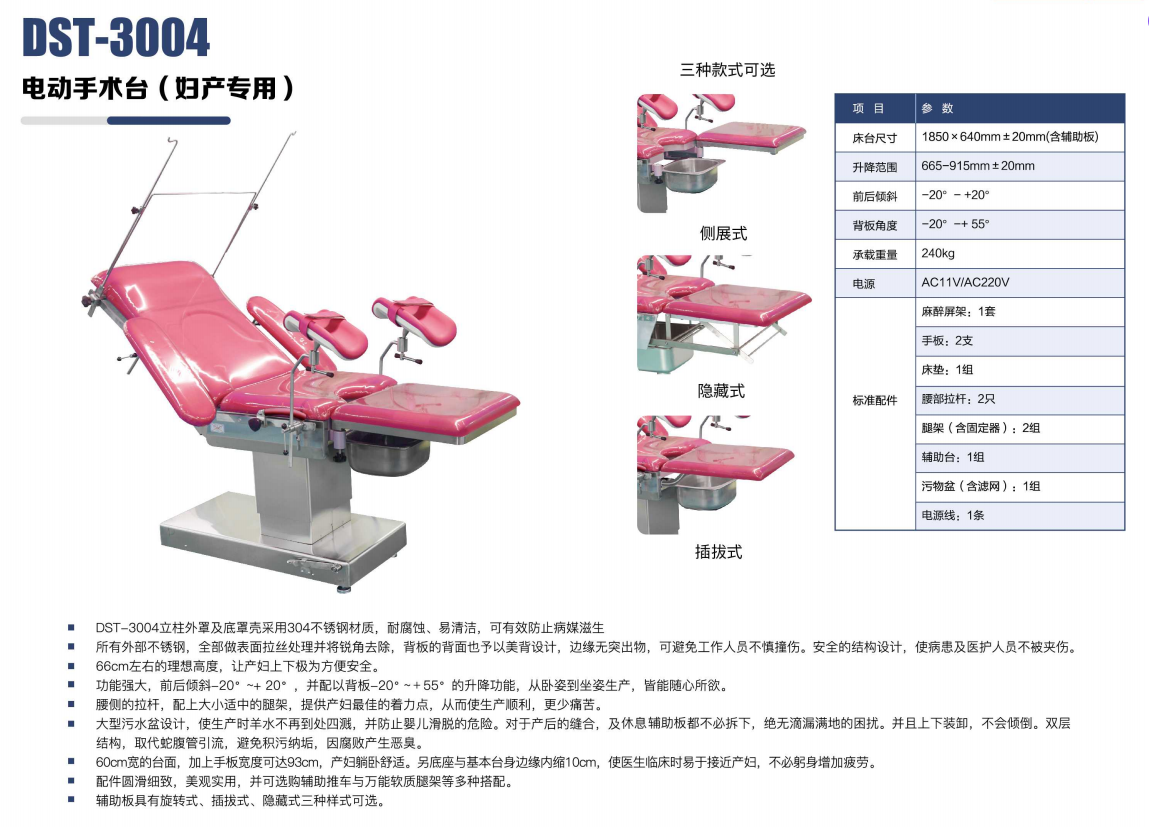

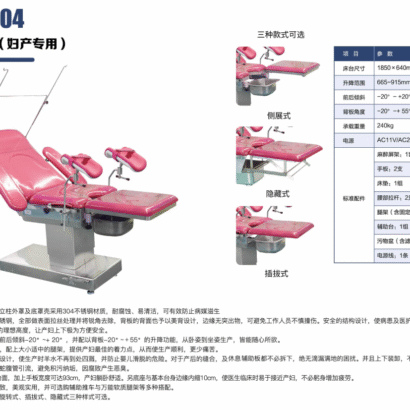

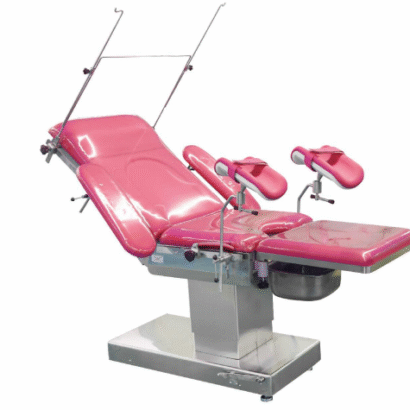

DST-3004 Electric Operating Table (for Obstetrics and Gynecology)

Item Specifications
Cover Dimensions: 1850 x 640 mm ± 20 mm (including auxiliary board)
Lift Range: 665-915 mm ± 20 mm
Fore/aft Tilt: -20°-+20°
Backrest Angle: -20°-+55°
Load Capacity: 240 kg
Power Supply: AC11V/AC220V
Anesthesia Screen: 1 set
Handrails: 2
Mattress: 1 set
Standard Accessories: Lumbar Support Bars: 2
Leg Rests (with Fixtures): 2
Assistive Table: 1
Drain Basin (with Filter): 1
Power Cord: 1

The DST-3004’s column housing and bottom cover are constructed of corrosion-resistant, easy-to-clean 304 stainless steel, effectively preventing the breeding of pathogens. All exterior stainless steel features a brushed finish with smoothed edges. The back panel also features a contoured design with no protruding edges to prevent accidental collisions. The secure structural design protects patients and medical staff from being pinched. The ideal height of approximately 66cm makes it extremely convenient and safe for mothers to get in and out of the delivery position.

Powerful features include a -20° to +20° forward and backward tilt, and a -20° to +55° backrest adjustment, allowing for flexible delivery positions from lying to sitting. The waist support and conveniently sized leg rests provide optimal support points for a smooth and pain-free delivery.

The large wastewater basin prevents amniotic fluid from splashing during delivery and prevents the baby from slipping out. Postpartum sutures and the resting support plate do not need to be removed, eliminating the risk of spills. The device can be loaded and unloaded without tipping. The double-layer structure replaces accumulator tube drainage, preventing the accumulation of dirt and foul odors.

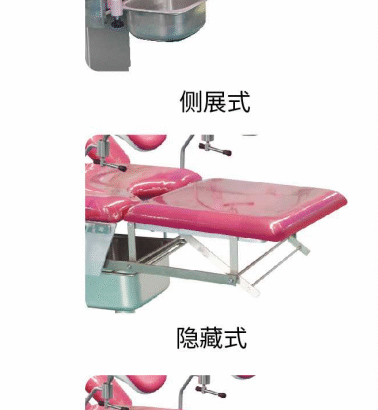

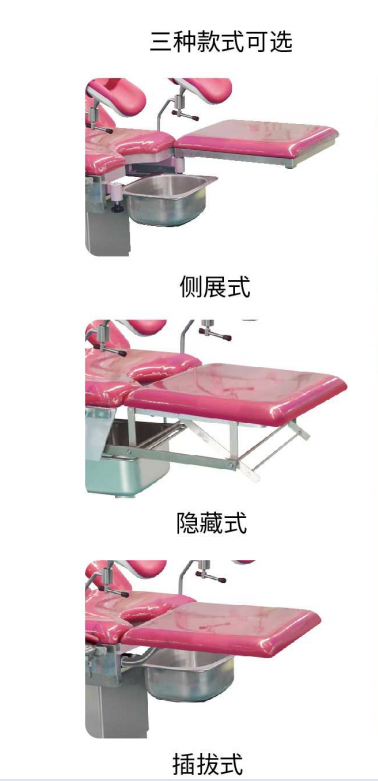

The 60cm-wide tabletop, combined with the handrail, reaches a width of 93cm, providing a comfortable reclining position for mothers. The base and the table edge are recessed 10cm, allowing doctors to easily reach the mother without bending over and causing fatigue. The sleek and refined accessories are both aesthetically pleasing and practical, and optional accessories include an auxiliary trolley and a versatile soft leg rest. The auxiliary board is available in three styles: rotating, plug-in, and concealed.
