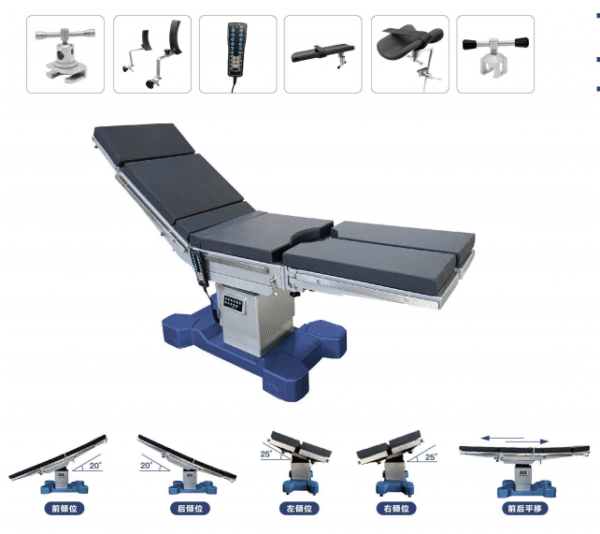

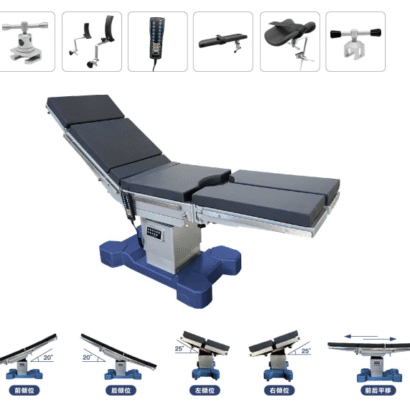

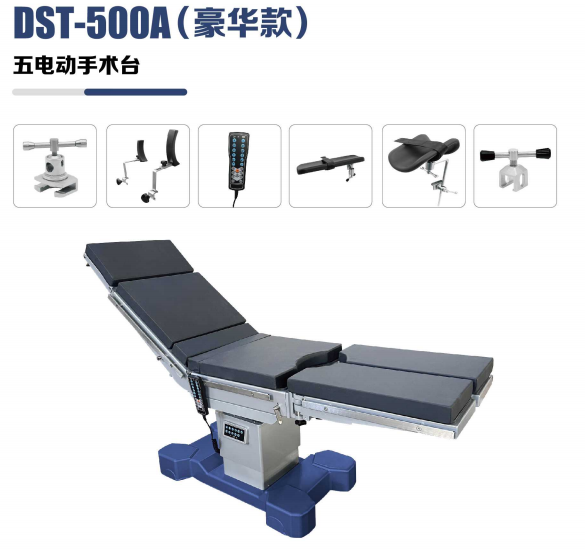

DST-500A (Deluxe) Five-motorized operating table

Item Specifications
Table Dimensions: 2100x500mm (excluding side rails)
Table Height: Maximum 920±20mm, Minimum 660±20mm
Table Tilt: Forward 20±2°, Backward 20±2°
Table Tilt: Left 25±2°, Right 25±2°
Leg Adjustment: Leg fold up 15±2°, Leg fold down 90±2°, Leg extension 180°
Back Adjustment: Back fold up 70±2°, Back fold down 20±2°
Head Adjustment: Head fold up 43±2°, Head fold down 90±2°
Translation: 300mm
Waist Bridge Lift Height: 120mm

Utilizing precision medical-grade micromotors, the product offers superior rigidity, consistent and stable speed, precise positioning, reliable performance, and durability.

Lifting, head-to-foot tilt, left-right tilt, and backboard folding are all driven by an independent power system.

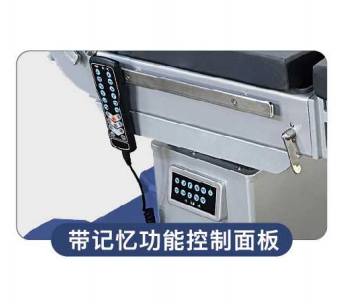

Five memory surgical positions allow the bed to be set to any position and then recalled at any time.

The mattress is made of high-density, soft, single-piece foam. Its natural shape and memory function reduce localized pressure. It is seamless, waterproof, easy to clean, anti-static, and removable.

The exterior is constructed of steel with a spray-coated plastic, resistant to stains and rust, ensuring optimal disinfection and collision protection.

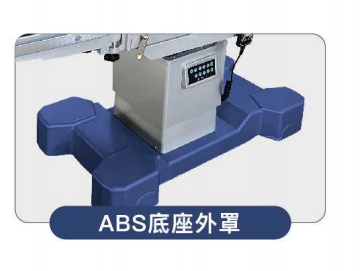

The base cover is made of ABS engineering material with a unique sealing design and anti-glare treatment to reduce eye fatigue for medical staff and facilitate cleaning and disinfection.
