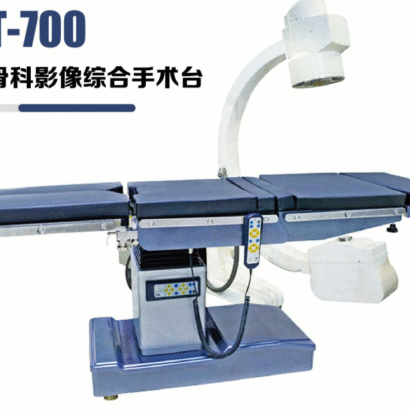

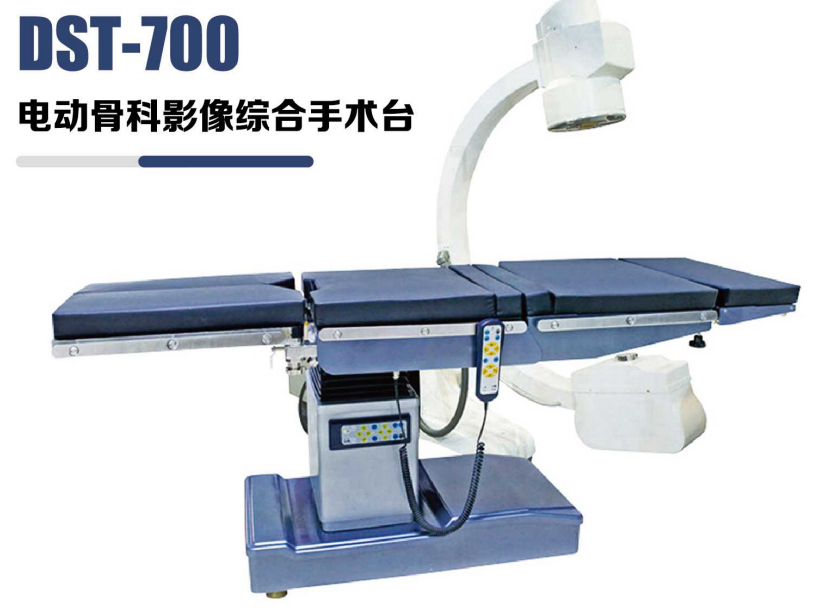

DST-700 Electric orthopedic imaging integrated operating table

700 Technical Specifications
Item Number
Bed Dimensions (Carbon Fiber) (2100×585) ±10mm
Bed Height from Floor: Minimum: (730±20) mm
(Excluding Cushion) Maximum: (1030±20) mm
Lifting Stroke: (300±20) mm (Electric)
Longitudinal Travel: (330±20) mm (Electric)
Head Tilt: 20±2° (Electric)
Head and Foot Tilt: 20±2° (Electric)
Left Tilt: 25±2° (Electric)
Side Tilt: 25±2° (Electric)
Up Fold: 60±2° (Electric)
Backboard Folding Angle: 20±2° (Electric)
Up Fold: 35±5° (Manual)
Legboard Folding Angle: 90±5° (Manual)
Headboard Folding Angle: Fold upward: 40° ± 5° (manual)
Fold downward: 90° ± 2° (manual)
One-touch reset function
X-ray attenuation coefficient of bed panel (optional) ≤ 0.73 mm/s
Bed lock: electric
Power supply: AC 220V 50Hz 300VA
(optional) DC 240V
Net weight: approximately 300 kg

The DST-700 Electric Orthopedic Imaging Comprehensive Operating Table utilizes a design concept that combines modern technology with a user-friendly design. Its electric mechanical transmission technology aligns with the latest trends in clinical surgery, meeting not only current imaging and diagnostic requirements during surgery but also the demands of cutting-edge modern procedures. The table is easy to operate, highly versatile, and widely applicable. Made of carefully selected materials and featuring superior craftsmanship, it meets international standards for quality.

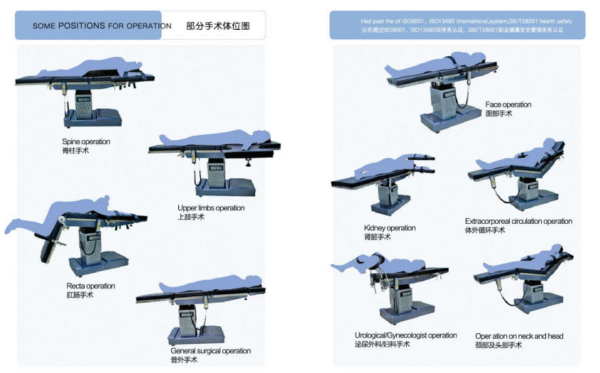

It fully meets the requirements of orthopedic (including lower limb) and spinal surgery, and can also perform general surgery, cardiac, renal, extracorporeal circulation, thyroid, head and neck, gallbladder, thoracic, urology, rectal, and gynecological procedures.

It utilizes a precision medical micromotor and an electric gear-engaging mechanical structure, replacing traditional hydraulic transmission technology. This eliminates the need for regular hydraulic oil refilling and the risk of oil leaks associated with hydraulic transmissions. The table offers superior rigidity, consistent and stable operating speeds, precise patient positioning, reliable performance, and durability.

The tabletop’s 330mm electric horizontal travel provides precise and convenient positioning for the C-arm, allowing for full-body X-rays without moving the patient. The tabletop is made of carbon fiber, which has a low X-ray absorption coefficient and provides high-definition fluoroscopic imaging, significantly reducing X-ray radiation exposure to patients and medical staff.

Each movement, including lifting, translation, head-to-foot tilt, left-right tilt, and backboard folding, is driven by an independent power system. Failure of one power unit does not affect the operation of other movements. Microcomputer control ensures precise and stable operation.

High-precision linear guides ensure smooth operation of the operating table.

Constructed of 304 stainless steel, the base and cover are ABS with an anti-glare treatment, reducing eye fatigue for medical staff and facilitating cleaning and disinfection.
