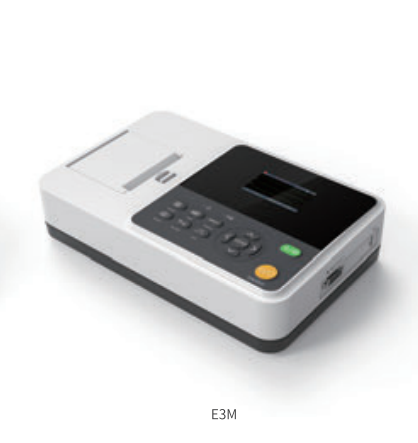

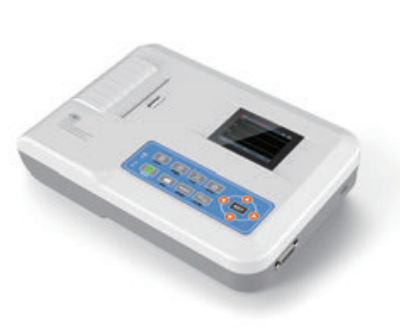

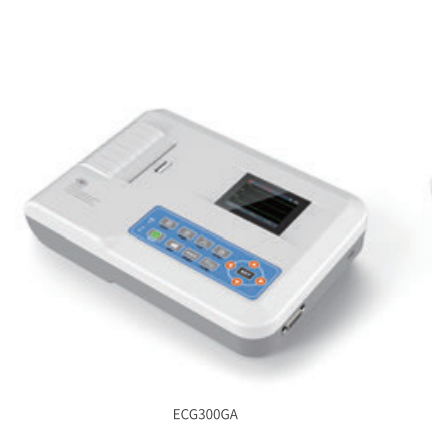

ECG300GA/E3M Electrocardiograph

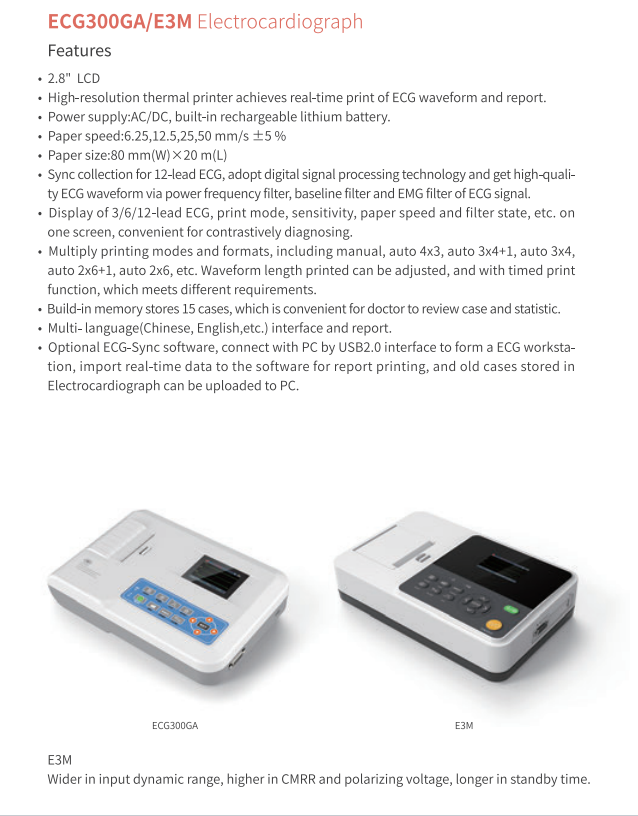

ECG300GA/E3M Electrocardiograph Features·2.8”LCD
.High-resolution thermal printer achieves real-time print of ECG waveform and report.. Power supply:AC/DC, built-in rechargeable lithium battery..Paper speed:6.25,12.5,25,50mm/s ±5%. Paper size:80 mm(W)x20 m(L)
.Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quali- ty ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
.Display of 3/6/12-lead ECG,print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
. Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1,auto 3×4, auto 2×6+1,auto 2×6, etc. Waveform length printed can be adjusted, and with timed print function, which meets different requirements.
. Build-in memory stores 15 cases, which is convenient for doctor to review case and statistic.. Multi-language(Chinese,English,etc.) interface and report.
·Optional ECG-Sync software, connect with PC by USB2.0 interface to form a ECG worksta- tion, import real-time data to the software for report printing, and old cases stored in Electrocardiograph can be uploaded to PC.
