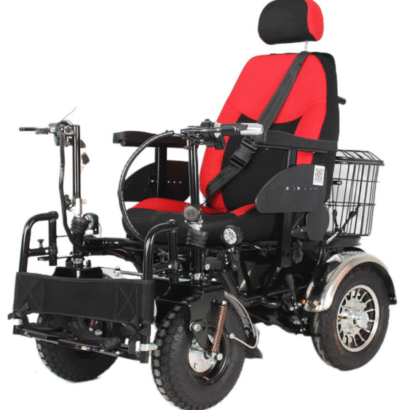

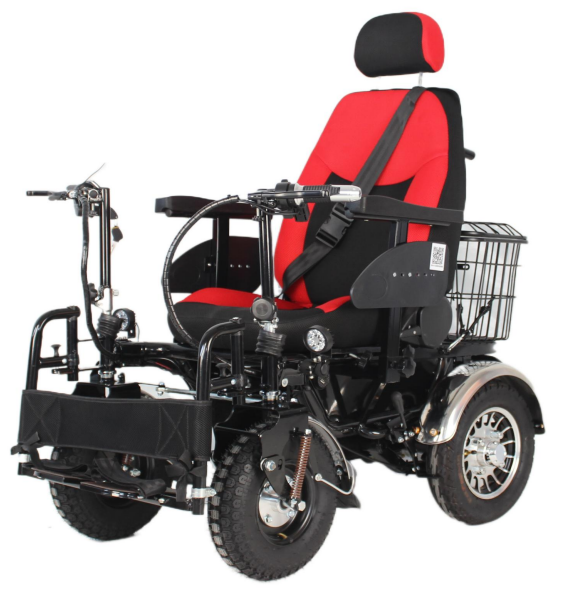

TH103

Optional configuration

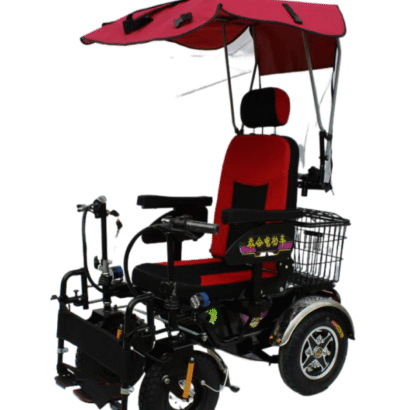

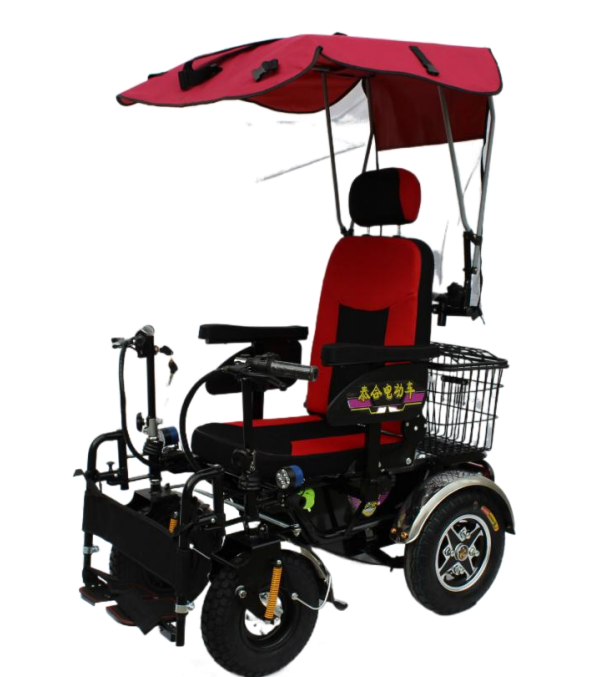

1.Upgrade 800/1000w differential motor 8. Add an awning
(600W standard)
2. Leatherseat, black red and pure black 9. Install electromagnetic brakes
two colors tn rhnnse from (standard mesh 10.Modified oil brake(standard

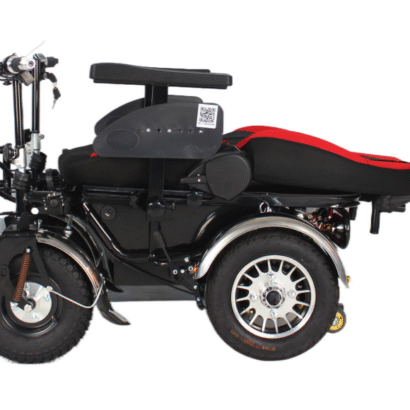

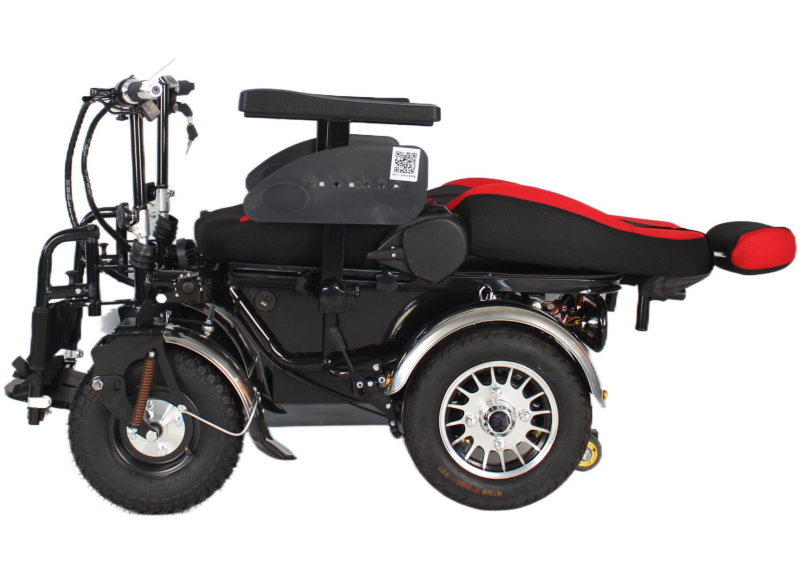

seat) drum brake)

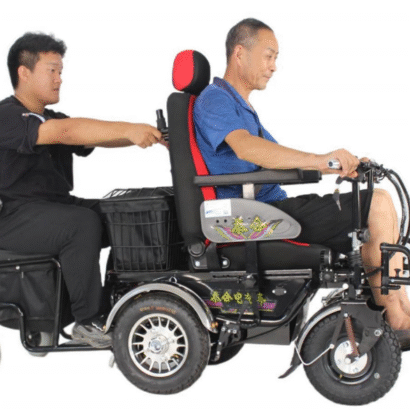

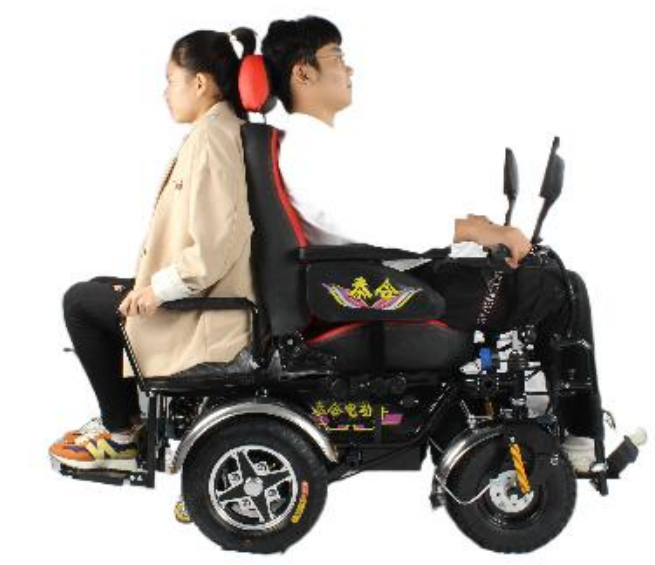

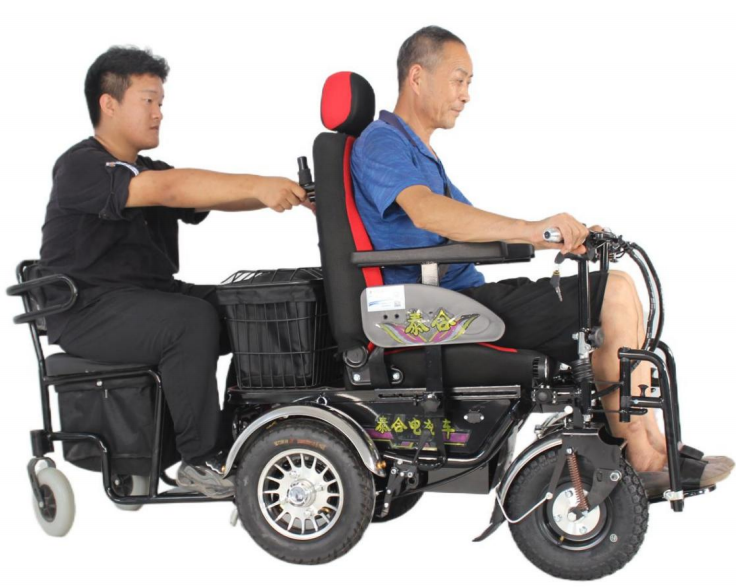

3. Rear-mountea passenger seat(two types) 11. Install electric lying flat
4.Add a stool (standard manual lying flat)

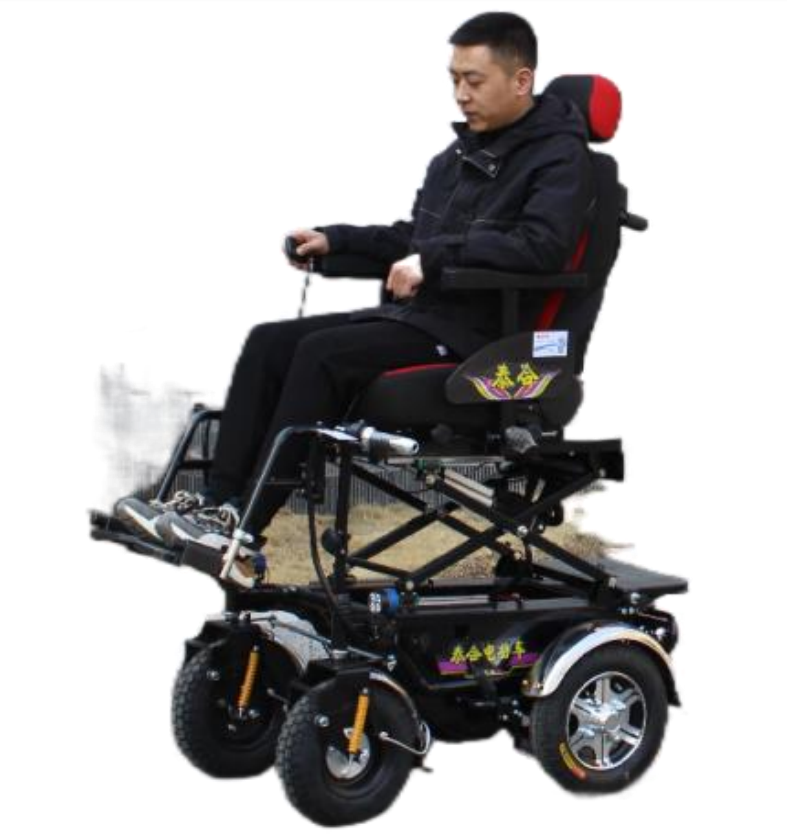

5. Install an electric lift seat 12.Manual lifting live leg (standard

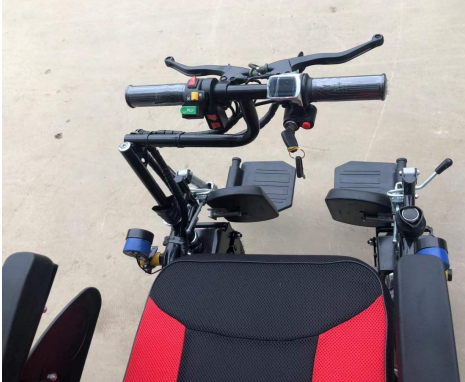

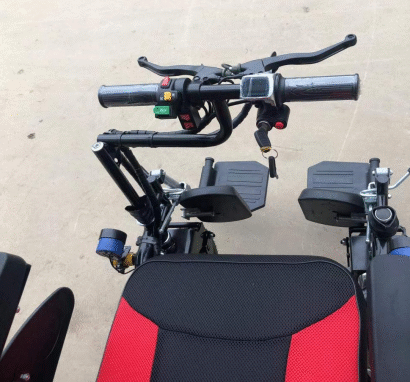

6.Change to one-handed operation (two can not lift live leg)
handles integrated together) 13. Install electric lift leg lift
14. Seat sizes can be customized
7. Install electric lying flat (manual lying flat 15.Modify the thumb acceleration
is standard) handle (press the button to
accelerate)
Parameter 16. Upgrade the 16-inch rear wheel
Product size (L *W*H):125*65*125cm
Package size (L*W*H): 115*65*64cm (plus 125*70*68 rear seat) Motor specification:48V600W middle differential motor (Max.60V1000W)
Standard battery:48V20AH lead-acid battery
Weight: The naked car weighs 67kg, and the total weight with the standard battery is 91kg
Maximum speed:18-20km/h(large motor can be customized faster) Range:25-100km (depending on the battery,48V20AH lead-acid battery is standard)
Front wheel size:13-inch inner tube inflatable wheel (350-6) tire width
9.5cm
Rear wheel size: 14 inches (300-8) tre width 8cm Other size parameters(unit cm):
Seat cushion [Width:45| depth:45|ground height: 53] Seat back [Width:45|Height:57]
Seat headrest [Width:22|Height:15]
Seat armrest [inner width: 47| outer width:58]
