TH103-1

Optional configuration
1.Upgrade 800W or 1000W 5. Add electric leg lifts
differential motor (originally600 W) 6. Upgrade the oil brake
2.Replace leather seats (black and 7. Add thumb acceleration handle
red black optional) (press the button to accelerate)
3. Install electromagnetic brakes 8. Adjustable rotating basket
4.Change to one-hand operation (easy to lie back)
(two handles integrated together) 9. Seat size can be customized
Advantage:

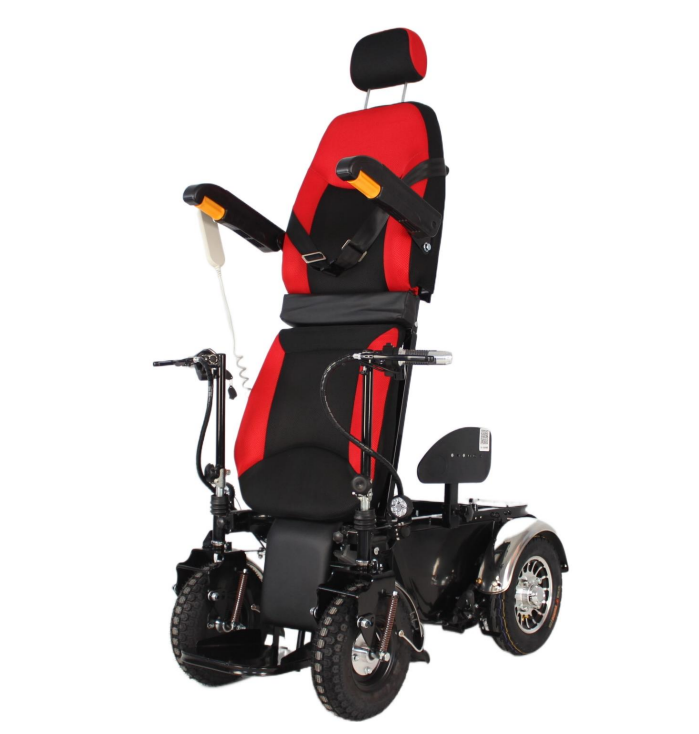

1. Standing King Kong is an upgraded version of King Kong, adding electric standing function. It can help the user to stand up and effectively relieve bedsores and muscle atrophy caused by prolonged sitting.
2. Double handles are easy to operate, tires are enlarged and widened, equipped with spring shock absorption.
3. Large motor power, fast speed, large battery capacity, long driving range. Parameter:
Product size (L*W*H):125*65*125cm Package size (L*W*H):125*70*68cm
Weight: naked car 79kg with standard battery total weight of 103kg Standard battery:48V20AH lead-acid battery
Motor specification:48V600W middle differentialmotor (Max.60V1000W)
Control mode: hand turn, both hands operation
Braking mode: double rear wheel mechanical drum brake, optional electromagnetic brake and oil disc brake. Maximum speed:18-20km/h
Range:25-100km (48V20AH is standard depending on the battery) Front wheel specification:13 “inner tube pneumatic tyre width 9.5cm Rear wheel size: 14″tyre width 8cm Other size parameters(unit cm):
Seat cushion [Width: 45| depth: 49|ground height: 53] Seat back [Width: 45|Height: 57] Seat headrest [Width: 22|Height:15]
Seat armrest [inner width:46|outer width: 56]
