TH103-2

Optional configuration
1. Upgrade 1000W differential motor 5. Add electric leg lifts
(standard 800W) 6. Upgrade the disk brake
2. Replace leather seats (black and 7. Add thumb acceleration handle
red black optional) (press the button to accelerate)
3. Install electromagnetic brakes 8. Seat size can be customized
4. Change to one-hand operation(two handles integrated together))

Parameter
Product size(L*W*H):166*90*125cm Package size (L *W*H):145*80*70cm
Weight: naked car 100kg with standard battery total weight 126kg Standard battery:48V20AH lead-acid battery
Motor specification: 48V800W middle differentialmotor (Max.60V1000W)

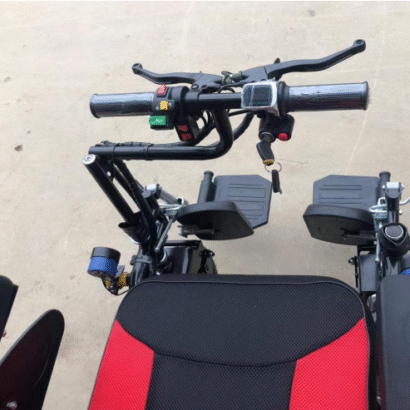

Control mode: hand tur, both hands operation
Braking mode: double rear wheel mechanical drum brake, optional electromagnetic brake and oil disc brake. Maximum speed:18-20km/h
Range:25-90km(48V20AH is standard depending on the battery) Front wheel specification: 13 “inner tube pneumatic tyre width 9.5cm Rear wheel size: 14 “tyre width 8cm Other size parameters (unit cm):
Seat cushion [Width: 46| depth:46|ground height: 53] Seat back [Width:45-50|Height:57] Seat headrest[Width:22|Height:15]
Seat armrest [Inner width: 51| outer width:62.5] Rear seat dimensions:48W/ 37 D
