TH201

Optional configuration

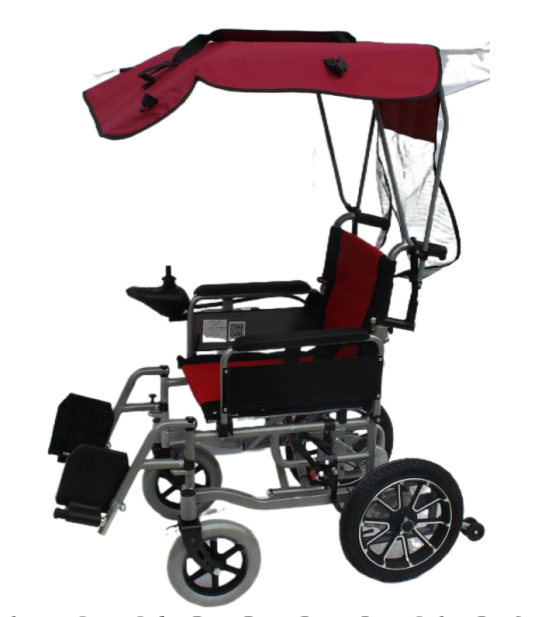

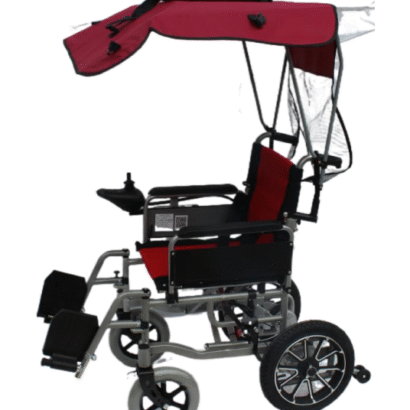

1. Upgrade the manual leg lift 4.Add an awning
2. Upgrade the electromagnetic brake 5. Install and hang passenger seats
6.Can add stool

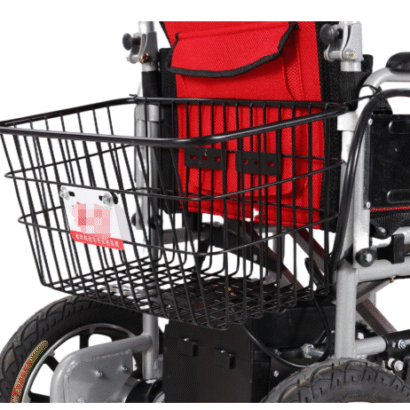

3. Add a rear storage basket
Advantage:

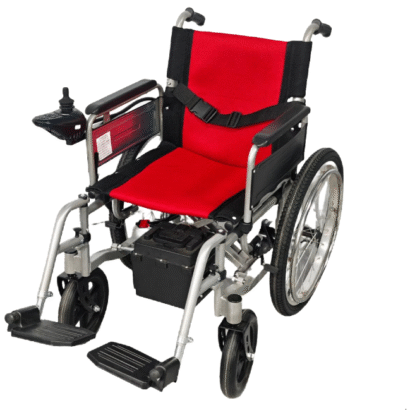

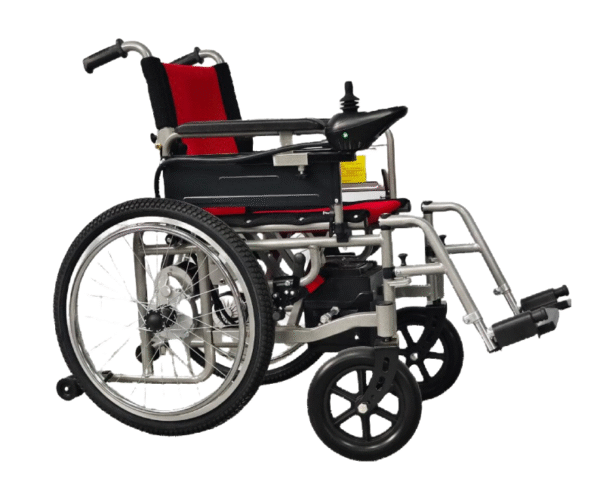

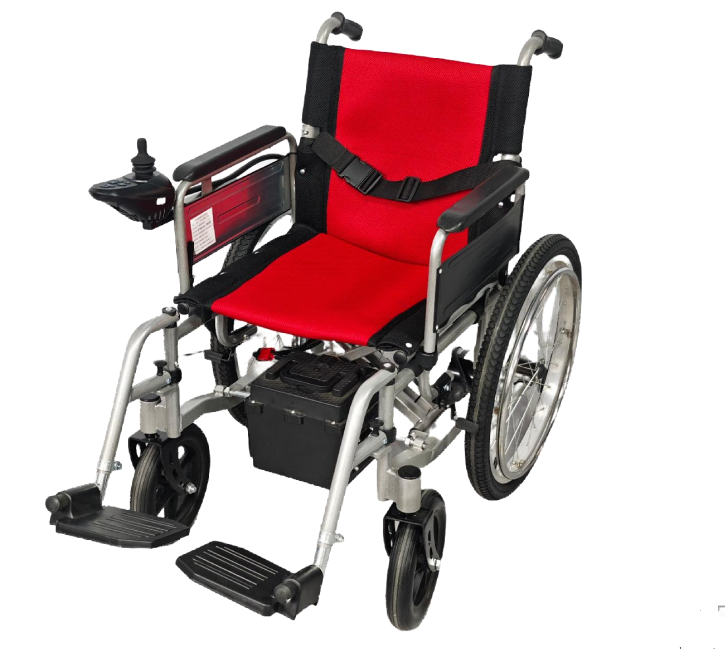

1.Taihe 201 is a conventional and lightweight folding electric wheelchair, which can be quickly folded, armrest baffle turned back, foot leg support180° internal and external folding and quick disassembly and other convenient and practical operations.
2. The large wheel of the hand circle can be driven by electric and manual, the front wheel is free of inflation PU wheel, and the speed is 0-8km/h.
3.360°rocker control, can upgrade the electromagnetic brake. Parameter:
Product size (length * width * height) : 115*65*93cm Package size (L *W *H):85*40*78cm
Weight:31kg naked, 38.6kg total weight with standard battery
Standard battery:24v12AH lead-acid battery Motor specification:24V250W*2
Control mode: One-hand 360° universal rocker controller Brake mode: electronic brake (optional electromagnetic brake)
Folding mode: Folding left and right Maximum speed:5-8 km/h
Range:10-20km (depending on battery)
Front wheel specification:10 inch high elastic PU non- inflatable tire
Rear wheel specification:22 inner tube pneumatic tube Other size parameters (unit cm) :
Seat cushion [Width:45| depth: 42|ground height:50] Seat back [Width:45|Height:40]
Seat armrest [Inner width:46|outer width: 55]
