TH201A/TH201D

Optional configuration
1.Two rear wheel styles are available 5.Add an awning
2. Upgrade the manual leg lift(black hollow hub) (silver disc hub )

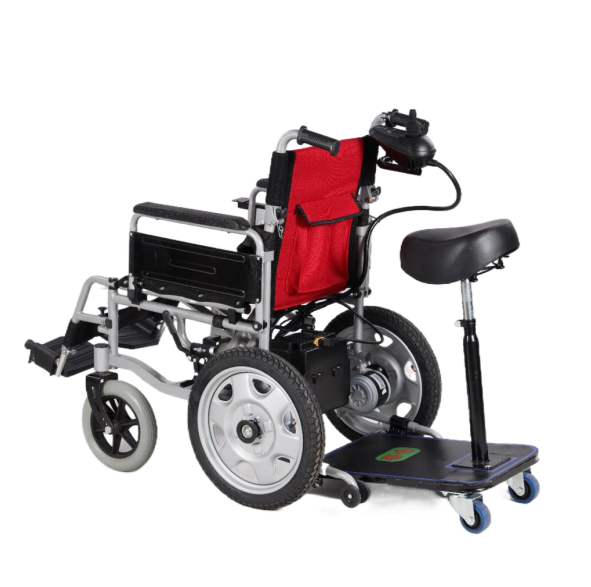

6. Install and hang passenger seats,
3. Upgrade the electromagnetic brake 7.Can add stool
4. Add a rear storage basket_ 8. Can change the left and right hand
control
Advantage:

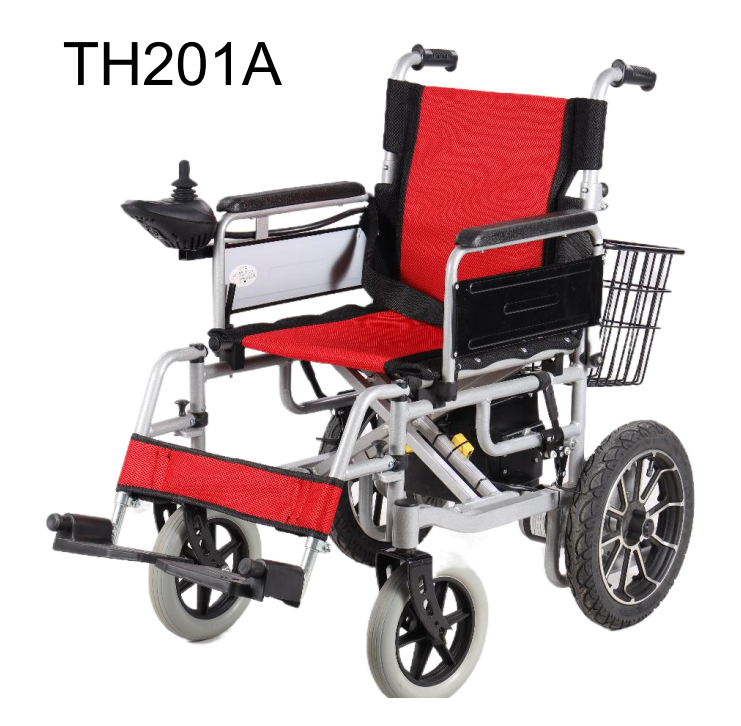

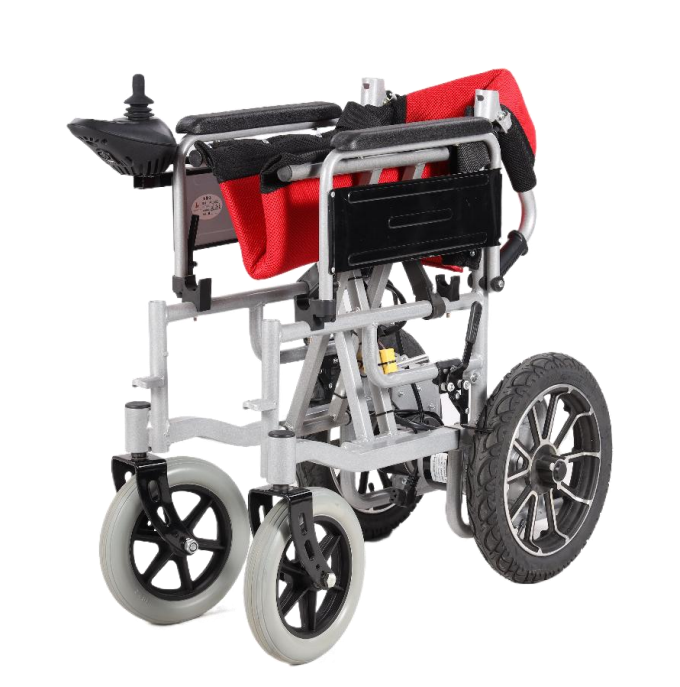

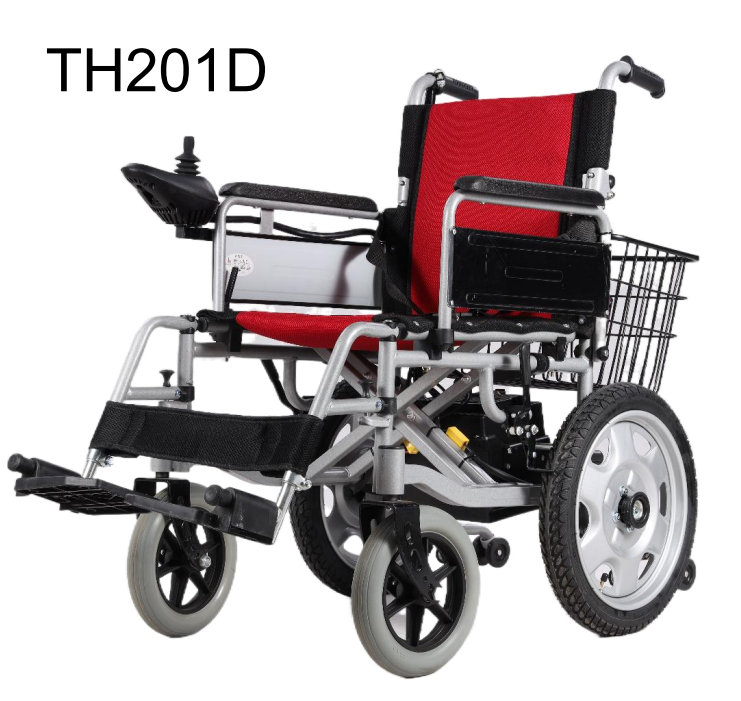

Features of Taihe 201A and 201D electric wheelchairs are as follows: – Can be quickly folded, armrest, foot leg support can be folded and disassembled.
– Double 250 watt motor drive, front wheel free inflatable PU wheel, speed 0-8km/h, endurance 10-20km.
-360°rocker control, can upgrade the electromagnetic brake, to ensure user safety. Parameter:
Product size (length * width * height):115*63*93cm Package size(L*W*H):85*40*78cm
Weight: 31kg naked, 38.6kg total weight with standard battery Standard battery:24v12AH lead-acid battery Motor specification:24V250W*2
Control mode: One-hand 360°universal rocker controller
Brake mode: electronic brake (optional electromagnetic brake) Folding mode: Folding left and right Maximum speed:5-8 km/h
Range:10-20km (depending on battery)
Front wheel specification:10 inch high elastic PU non-inflatable tire Rear wheel specifications: 14 “inner tube pneumatic tire(201D for 16” pneumatic tire) can be replaced with solid tires Other size parameters(unit cm):
Seat cushion [Width:45| depth: 43|ground height:50] Seat back [Width:42|Height: 45]
Seat armrest [Inner width:46|outer width:55]
