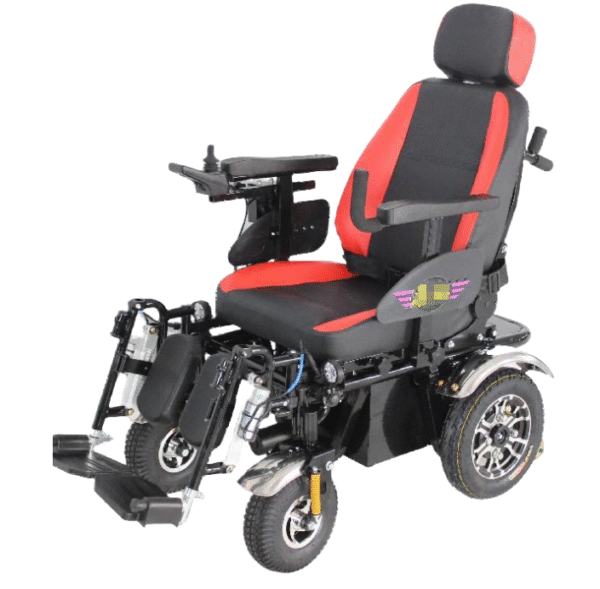

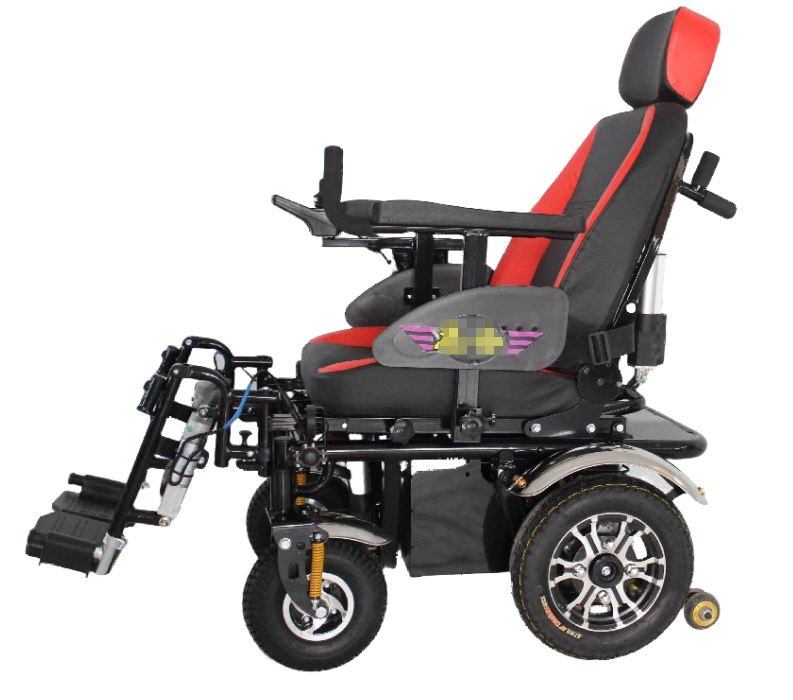

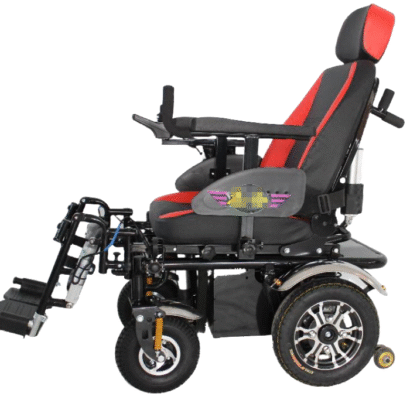

TH201W-3

Optional configuration
1. Standard leather seat (black red, red, 4.Add an awning
pure black optional) 5.Add wireless remote control
2. Separate headrest seat and integrated 6. Retrofit 16 “rear wheel (14″standard)
racing seat are available (as shown above) 7. Seat sizes can be customized
3. Install a rear passenger seat 8. Can be modified left hand control or
rear control (standard for right hand)
Advantage:
1. Off-road electric wheelchair, fully functional.
2.360° rocker control, can be turned in place, electromagnetic brake, safety is guaranteed.
3. The whole car damping, adapt to complex road conditions.
4. Leather seat, easy to clean.
5. Multi-speed adjustment, large battery capacity, long driving range, support the whole car customization.

Parameter:
Product size (L*W*H):125*65*120cm Package size (L* W*H):115*65*64cm
Weight: naked car weight 65kg standard 24V40 amp lead-acid weight 89kg
Motor specifications:24V 350W 2
Control mode:One-hand 360° universal rocker controller Brake mode: electronic brake + electromagnetic brake Maximum speed:5-8km/h
Range:25-100km (24V40AH lead-acid battery is standard depending on the battery)
Tyre size: Front: 10 inch pneumatic tyre with inner tube (350-4) Rear:14 inch vacuum tyre(300-8) Other size parameters (unit cm):
Seat cushion [Width:46| depth:46|ground height:51] Seat back [Width:46|Height:58]
Seat headrest [Width:22|Height:13]
Seat armrest [Inner width:50|outer width:61]
