TH301

Advantage:

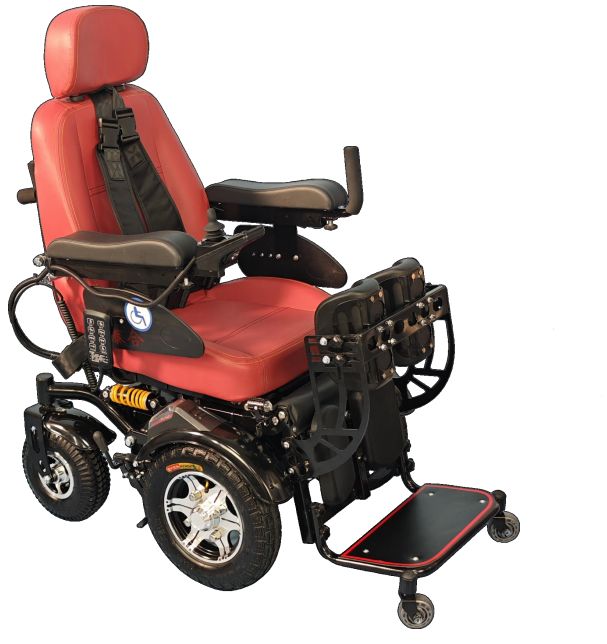

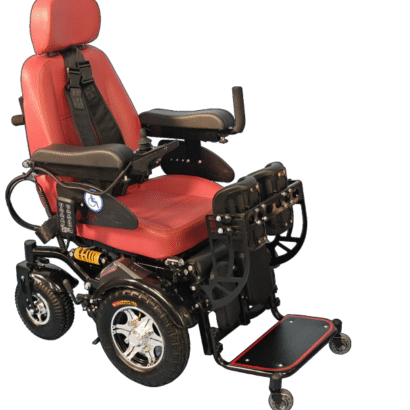

The Taihe 301 four-wheel independent shock-absorbing front-wheel drive standing wheelchair is equipped with functions such as electric standing, lying flat, leg lifting, and standing walking. It effectively alleviates bedsores and muscle atrophy caused by prolonged sitting and reduces stress.
2. Four wheels with independent shock absorption efficiently filter out bumps, ensuring smooth obstacle crossing and maximizing ride comfort.
3. The front-wheel drive large wheels enhance the obstine-crossing ability and ensure stable driving.Widened A-grade leather seats, soft and skin- friendly.
Parameter:
Product dimensions (length * width * height) : 112*65 *122cm Packaging dimensions (length * width * height) :125*70*68cm
Weight: The bare vehicle weighs 84kg, and the total weight with the standard 24V40 battery is 108kg
Standard battery:24v40AH lead-acid battery
Motor specification: 24V340W two worm gear motors (or 500W power) Control mode: One-handed 360° universal joystick controller Braking method: Electromagnetic brake
Range:25-100km (The range varies depending on the battery) Front wheel specification:14-inch vacuum tire(300-8)
Rear wheel specification: 10-inch inner tube pneumatic tire(350-4) Other size parameters(unit: cm):
Seat cushion [Width:50|Depth:45|Ground clearance:53] Seat backrest [Width: 47|Height: 52] Seat headrest [Width:28|Height:20]
Armrest [Inner width:47| Outer width:63]

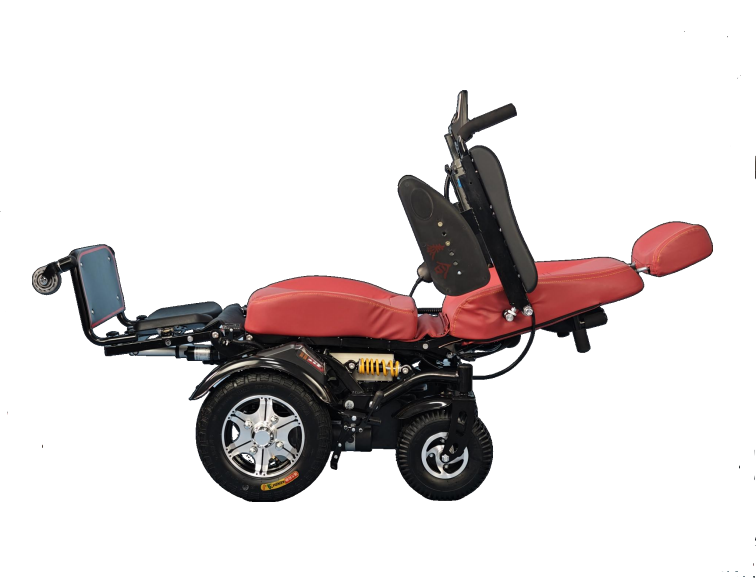

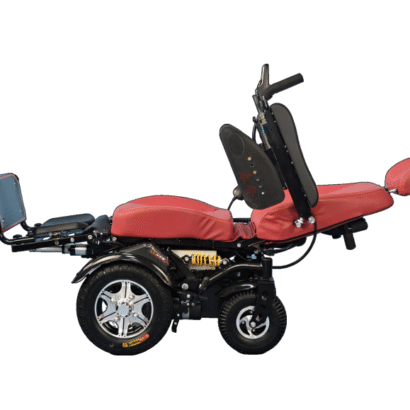

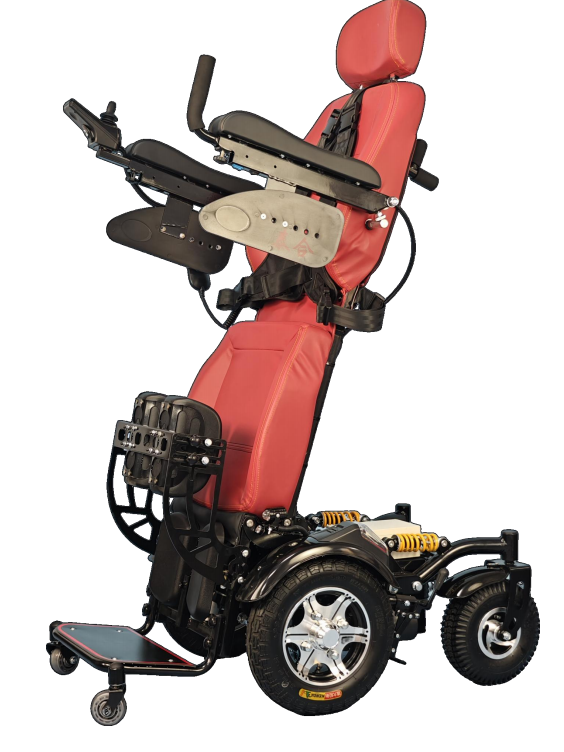

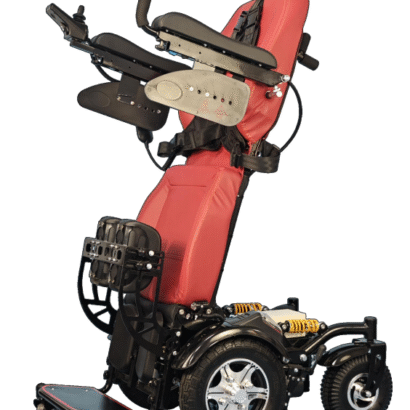

The total length when lying flat is 176cm, and the standing height is 166cm
