TH3022/TH3023

Advantage:

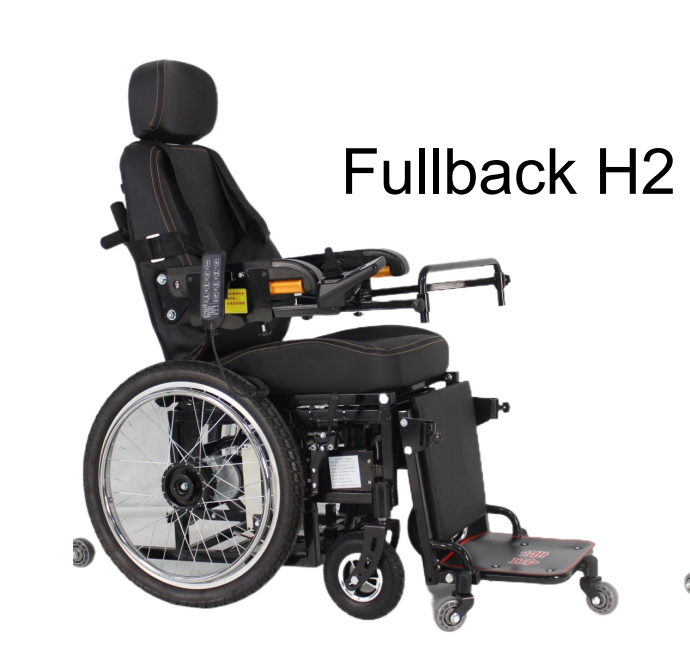

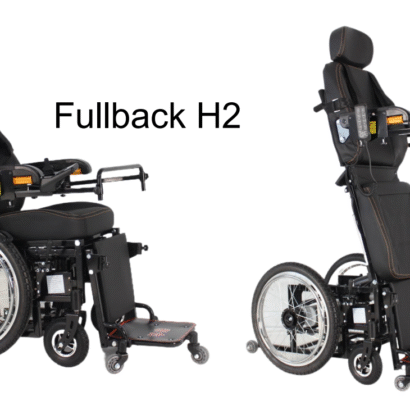

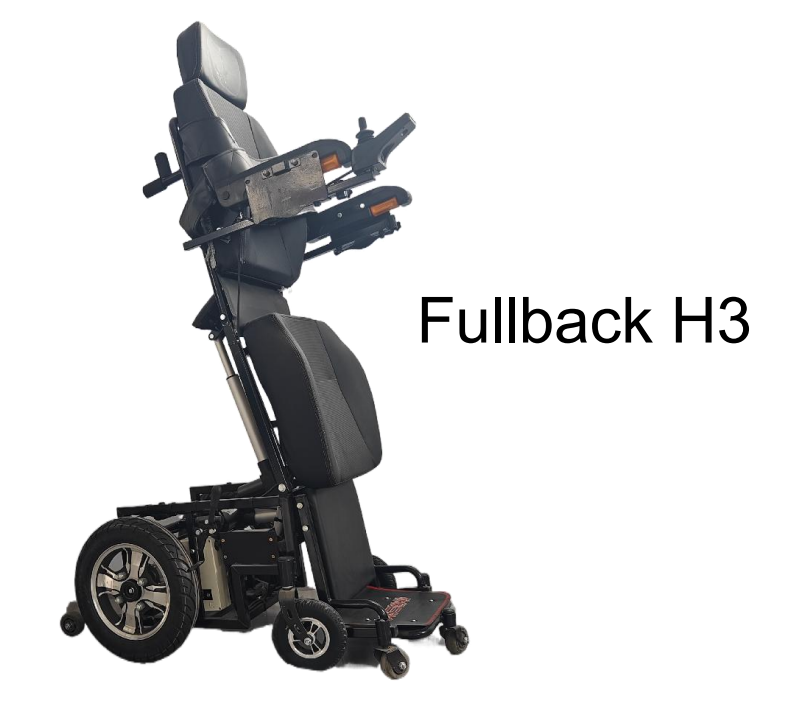

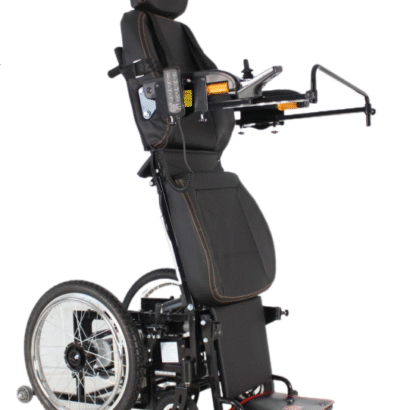

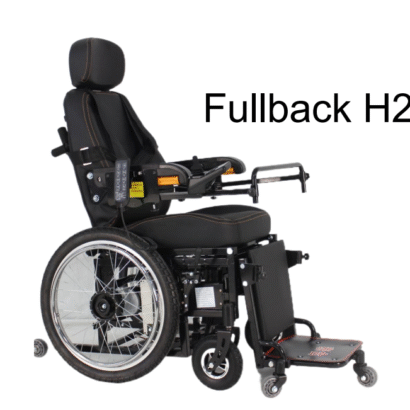

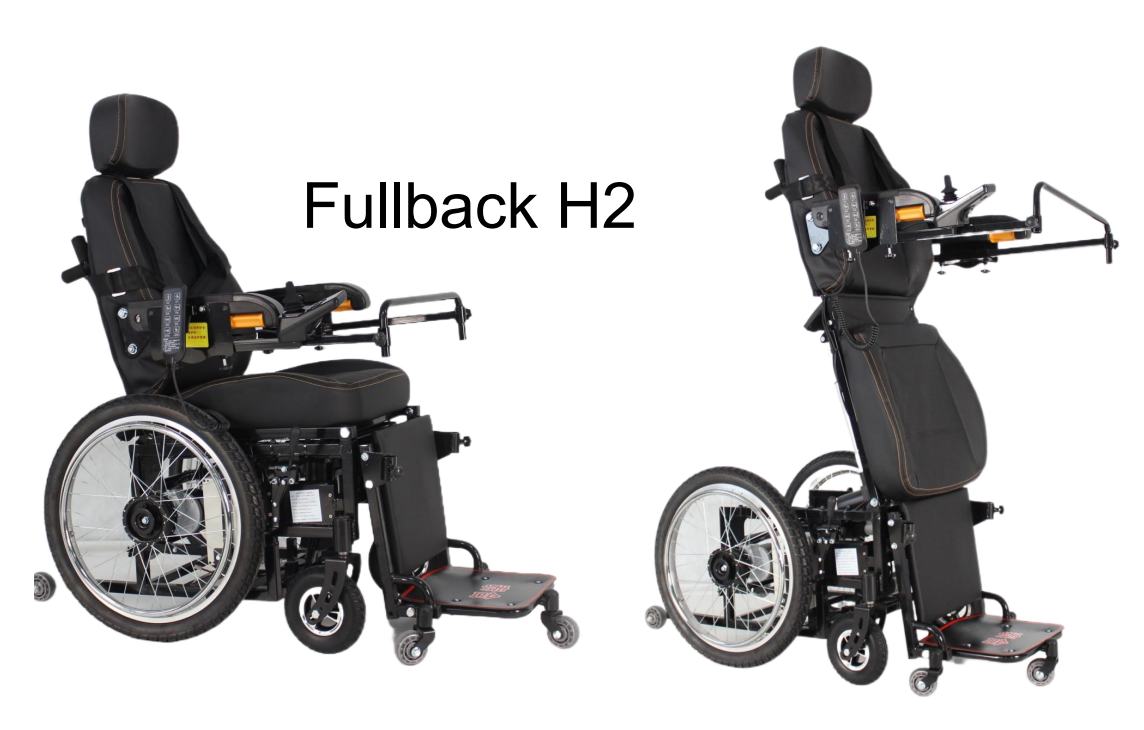

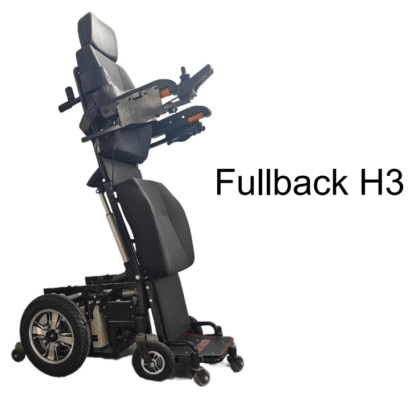

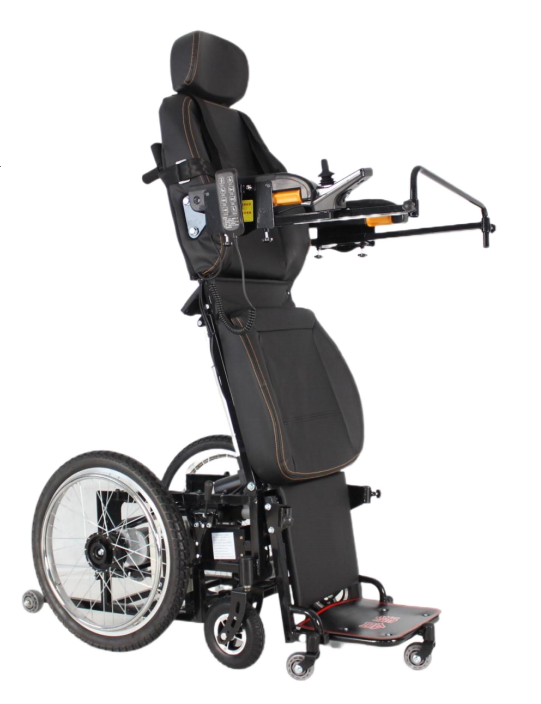

1.Taihe Fullback H2 and Fullback H3 are electric standing wheelchairs with the same function and different wheel specifications. It has the functions of electric standing, lying flat, leg lifting, standing and walking, which can effectively relieve bedsores and muscle atrophy caused by sitting for a long time and relieve stress
2. Thickened soft seat, comfortable ride experience.
3. The defender H2 large wheel model is equipped with a hand wheel ring, which is flexible and convenient for manual control.
Parameter:
Product size (length * width * height): 125*65*130cm Package size (L*W*H):132*70*68cm
Weight: [Guard H2 naked car 63kg with standard battery 75kg Guard H3 naked car 66.5kg with standard battery 90.5kg]
Battery specifications: 24V20AH lead-acid battery is standard for fullback H2,24V40AH lead-acid battery is standard for fullback H3(higher specification battery is optional)
Motor specifications: Guard H2 adopts two 24V250W,guard H3 adopts two24V350W
Control mode:One-hand 360° universal rocker controller Brake mode: electromagnetic brake Maximum speed:5-8km/h
Range:10-35km depending on the battery capacity Front wheel size:8 inches
Rear wheel size: 22 inches for the back H2 and 16 inches for the back H3 Other size parameters(unit cm):
Seat cushion [Width: 50| depth:46| ground height: 57] Seat back [Width: 47|Height:52]
Seat headrest [Width: 28|Height:20]
Seat armrest [inner width: 47[outer width: 59]
