TH305

Optional configuration.
1. High back electric lying model can be 4. Rear passenger seat can be added
selected
5.Can change left hand control or
2. Install a stool rear control
3. Optional 14-inch inflatable wheel 6. Shade can be added
(standard 22-inch solid or inflatable wheel)
Advantage:

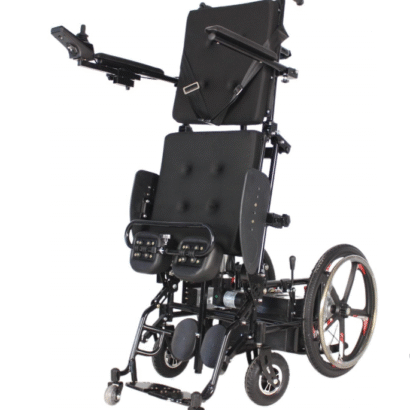

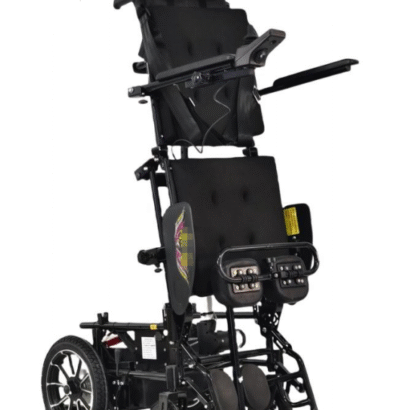

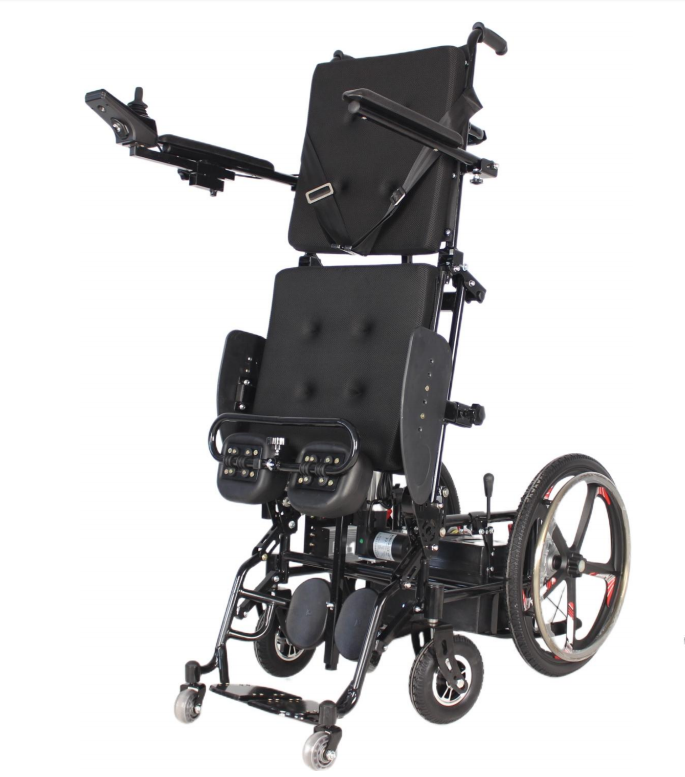

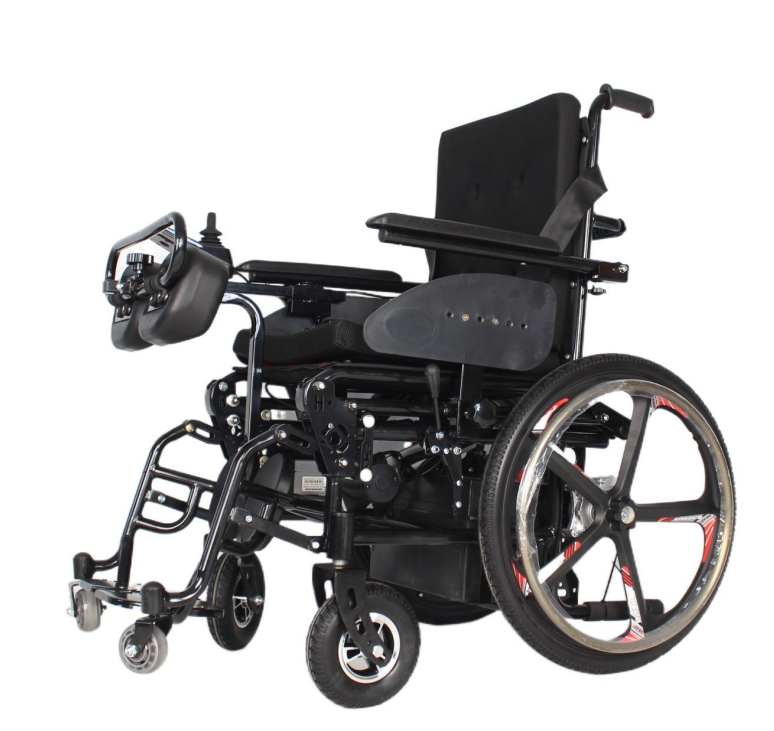

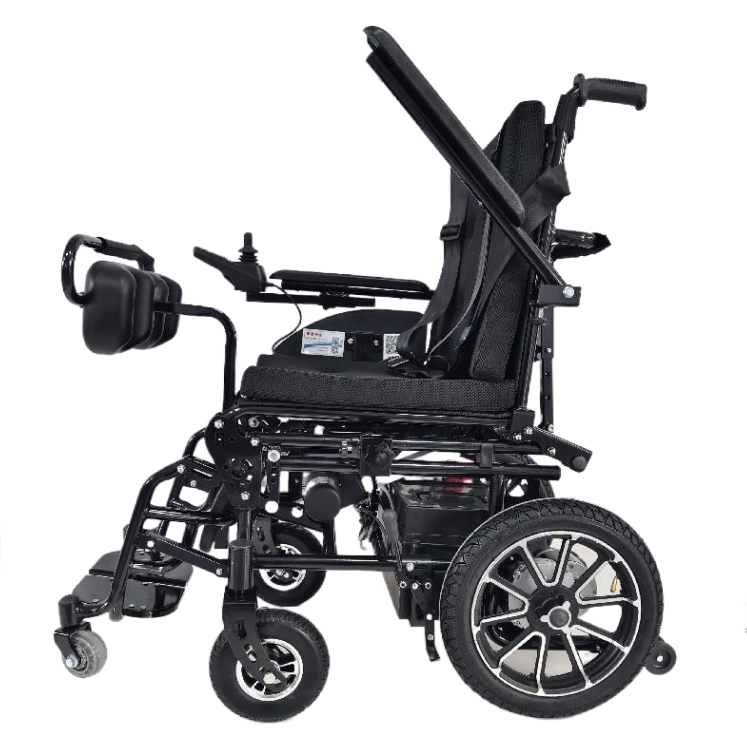

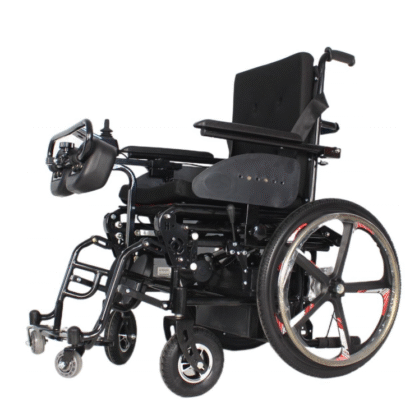

1.Taihe Blackhawks H2 standing wheelchair is small in size, flexible and convenient for indoor use, with adjustable leg supports, side baffles, side armrests and backrest.
2.With electric driving, electric standing, electric rear-lying and other functions, 22 inches rear wheel can be manually controlled.
3.Standard large-capacity battery,0-8km/h, 360° rocker control, electromagnetic brake, rear anti-rolover wheel design. Parameter:
Product size(L*W* H): (22 inch rear wheel model) 107*62*100cm(14-inch rear wheel model) 100*56*100cm Package size (L* W * H):100*60*78cm
Weight: naked car 46kg with standard battery 70kg total weight Standard battery:24v40AH lead-acid battery Motor specification: two 24V250W
Control mode: One-hand 360°universal rocker controller Brake mode: electronic brake + electromagnetic brake Maximum speed:5-8 km/h
Range: 30-100km (depending on the battery life)
Front wheel specification: 8-inch non-inflatable PU wheel Rear wheel size: 14-inch pneumatic tire or 22-inch solid tire Other size parameters(unit cm):
Seat cushion [Width:42| depth:43|ground height:55] Seat back [Width: 42|Height:43]
Seat headrest [Width:30|Height:30]
Armrest [inner width: 49| outer width: 58] The total length after lying down is 134cm, the total height after standing is 149cm.
