TH307-5

Advantage:

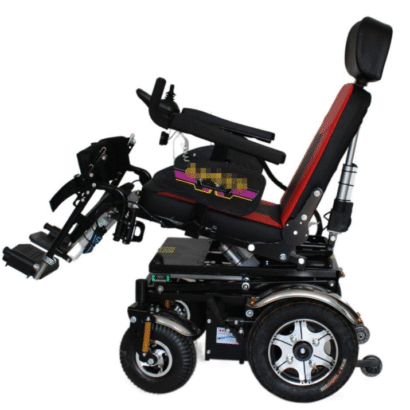

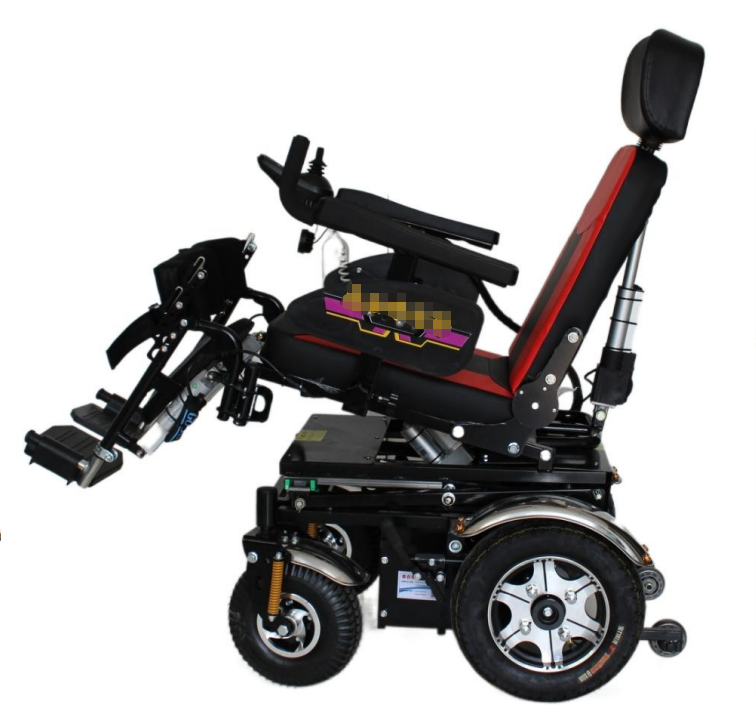

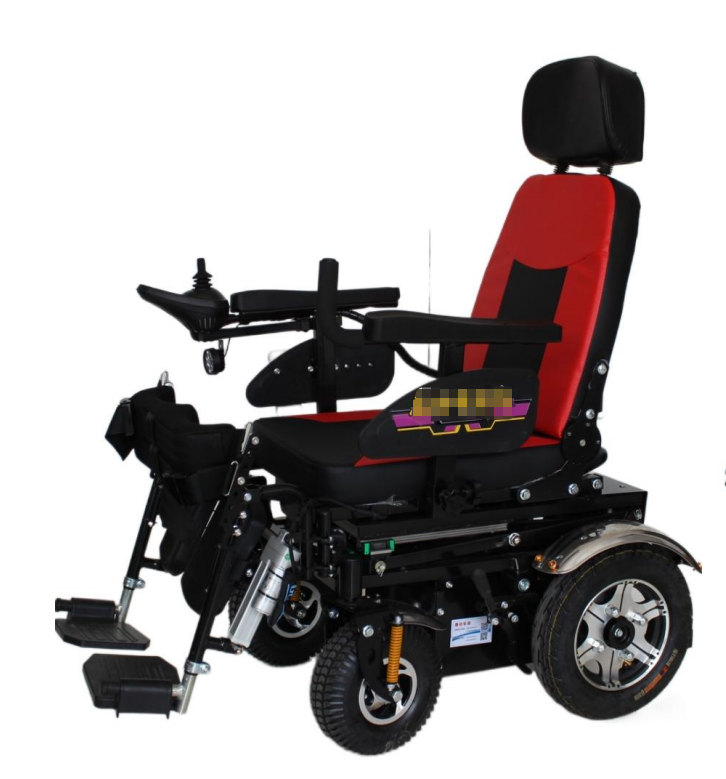

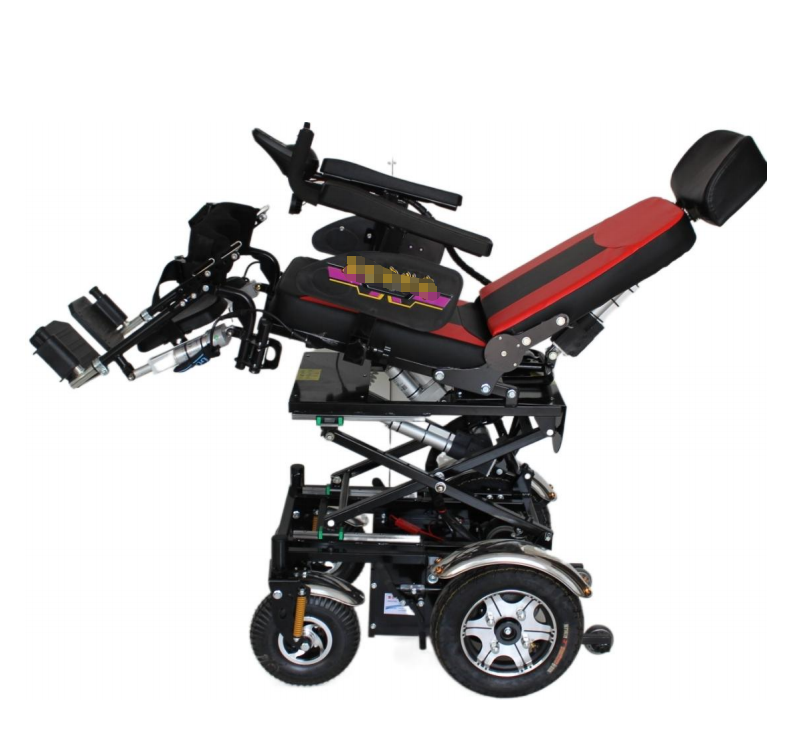

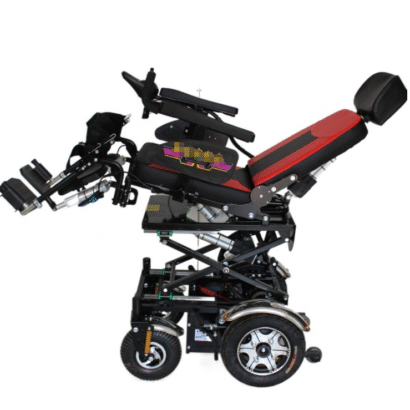

1. Taihe Cloudrise Max is a multi-functional electric wheelchair, which can be electrically lifted, leg lifted, flat lying and hip lifted, and the hovering height can reach one meter.
2.360°rocker control, electromagnetic brake, motor push rod self- locking, rear anti-rollover wheel design.
3. Both sides of the armrest, foot leg support can be quickly removed, the backrest Angle can be adjusted (optional electric leg lift non-removable foot leg support).
4. Suitable for paraplegia, hemiplegia patients, lower limb disabled people and elderly people with mobility difficulties.
5. Suitable for users with lifting operation requirements.
6. Suitable for bed or wheelchair users.
Parameter:
Product size (length * width * height):115*65*110cm Package size(L* W*H):115*65*64cm
Weight: Bare car 76.5 with standard battery total weight 100.5kg Standard battery:24v40AH lead-acid battery Motor specification:24V350W*2
Control mode: One-hand 360° universal rocker controller Brake mode: electronic brake + electromagnetic brake Maximum speed: 5-8 km/h Range:25km
Front wheel size:10 inch pneumatic tube with inner tube(350-4) Rear wheel size:14-inch vacuum tire(300-8) Other size parameters(unit cm):
Seat cushion [Width: 45|depth: 46| height from the ground:46 (lifting maximum height 95cm)]
Seat back [Width:45|Height: 58]
Seat headrest [Width:21|Height:15]
Seat armrest [inner width:49[outer width: 59|ground height: 75]
