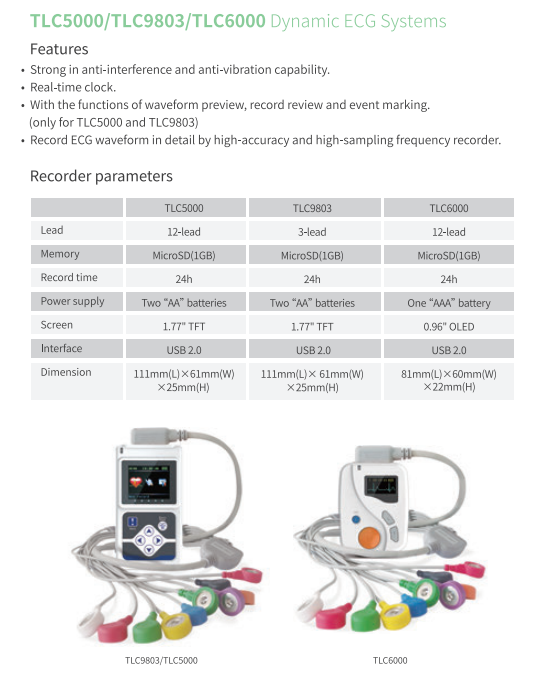

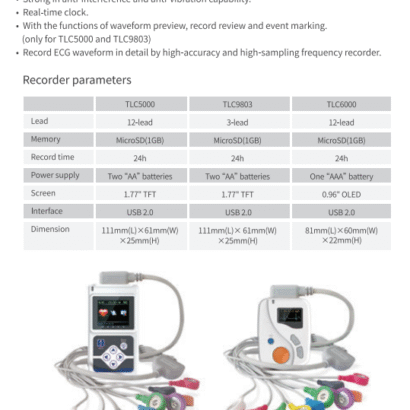

TLC5000/TLC9803/TLC6000 Dynamic ECG Systems

TLC5000/TLC9803/TLC6000 Dynamic ECG Systems Features
·Strong in anti-interference and anti-vibration capability..Real-time clock.
.With the functions of waveform preview, record review and event marking.(only for TLC5000 and TLC9803)
.Record ECG waveform in detail by high-accuracy and high-sampling frequency recorder.
Recorder parameters
TLC5000 TLC9803 TLC6000
Lead 12-lead 3-lead 12-lead
Memory MicroSD(1GB) MicroSD(1GB) MicroSD(1GB)
Record time 24h 24h 24h
Power supply Two“AA”batteries Two “AA” batteries One “AAA”battery
Screen 1.77″ TFT 1.77″TFT 0.96″ OLED
Interface USB 2.0 USB 2.0 USB2.0
Dimension 111mm(L)x61mm(W) 111mm(L)x 61mm(W) 81mm(L)x60mm(W)
x25mm(H) x25mm(H) x22mm(H)
