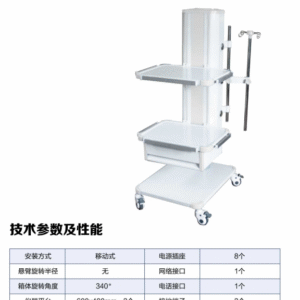

Technical Parameters and Performance
Mounting Method: Mobile
Power Sockets: 8
Cantilever Rotation Radius: None
Network Port: 1
Case Rotation Angle: 340°
Phone Port: 1
Instrument Platform: 600x400mm, 2
Grounding Terminals: 2
Drawer: 1
Extension Cord: 3000mm
IV Stand: 1 Set
Customizable
Gas Terminals: National Standard: 2 for oxygen, 2 for vacuum, 2 for air
Product Model: Electric Operating Table
Item Number
Operating Table Length: 2040 ± 10 mm
Operating Table Width: 570 mm (including side rails)
Table Height (excluding upholstery): Minimum: 680 ± 20 mm, Maximum: 980 ± 20 mm
Headboard Fold: Headboard folds up 45° ± 2°, downward 90° ± 2°, removable
Backboard Fold: Up 70° ± 2°, ...
Model: Four-axis Electric Operating Table, Five-axis Electric Operating Table
Item Number
Operating Table Length: 1980 ± 10 mm
Operating Table Width: 510 mm (excluding side rails), 560 mm (including side rails)
Table Height (excluding padding): Minimum: 670 ± 20 mm, Maximum: 920 ± 20 mm (electric)
Headboard Fold: Headboard folds up 40° ± 2°, ...
Item Parameters
Operating table total length: 2150 ± 20 mm
Operating table width: 600 ± 20 mm
Minimum table height from floor (including padding): (590 ± 20) mm
Headboard lift travel: (90 ± 20) mm (manual)
Table lift travel: (240 ± 20) mm (electric)
Back lift: 65°
Fold down: 20°
Table Dimensions (2070x520) ± 10mm
Table Height (excluding seat): Maximum (1040 ± 20)mm, Minimum (540 ± 20)mm
Forward/Backward Tilt: Forward ≥ 30°, Backward ≥ 30°
Left/Right Tilt: Left ≥ 20°, Right ≥ 20°
Headrest Adjustment: Upward Fold ≥ 50°, Downward Fold ≥ 90°
Backrest Adjustment: Upward Fold ≥ 80°, Downward Fold ≥ 40°
Leg Adjustment: ...
Item Parameters
Tabletop Dimensions (2150x540) ±10mm
Tabletop Height from Floor (excluding Pad): Maximum: Minimum: (650±20) mm (1000±20) mm
Lifting Stroke: (350±20) mm (Electric)
Tabletop Longitudinal Travel: (330±20) mm (Electric)
Head and Foot Tilt: Head Tilt: 28°±2°
Foot Tilt: 28°±2° (Electric)
Tilt Angle: Left: 23°±2°
Right: 23°±2° (Electric)
Backboard Fold Up: 78°±2°
Fold Down: 40°±2° (Electric)
Legboard Fold Up: 30°±2°
Fold Down: ...
Parameters
Table Dimensions (2150x540) ±10mm
Table Height (excluding seat): Highest (1000±20)mm, Lowest (660±20)mm
Lifting Travel (340±20)mm (electrical)
Head and Foot Tilt: 25±2°, Foot Tilt: 25±2° (electrical)
Leg Adjustment: Manually fold up 28±2°, fold down 90±2°
Back Adjustment: Manually fold up 65±2°, fold down 35±2°
Head Adjustment: Manually fold up 30±2°, fold down 90±2°
Table Longitudinal Travel (330±20)mm ...
Table Dimensions (2070x520) ± 10mm
Table Height (excluding seat): Maximum (1040 ± 20)mm, Minimum (540 ± 20mm)
Forward/Backward Tilt: Forward ≥ 30°, Backward ≥ 30°
Left/Right Tilt: Left ≥ 20°, Right ≥ 20°
Headrest Adjustment: Upward Fold ≥ 50°, Downward Fold ≥ 90°
Backrest Adjustment: Upward Fold ≥ 80°, Downward Fold ≥ 40°
Leg Adjustment: ...
Table Dimensions (2070x520) ± 10mm
Table Height (excluding seat): Maximum (1040 ± 20)mm, Minimum (540 ± 20)mm
Forward/Backward Tilt: Forward ≥ 30°, Backward ≥ 30°
Left/Right Tilt: Left ≥ 20°, Right ≥ 20°
Headrest Adjustment: Upward Fold ≥ 50°, Downward Fold ≥ 90°
Backrest Adjustment: Upward Fold ≥ 80°, Downward Fold ≥ 40°
Leg Adjustment: ...
